Front Heated Seats Control Module Connector End View (J774, T8z)
Behind the center consol.

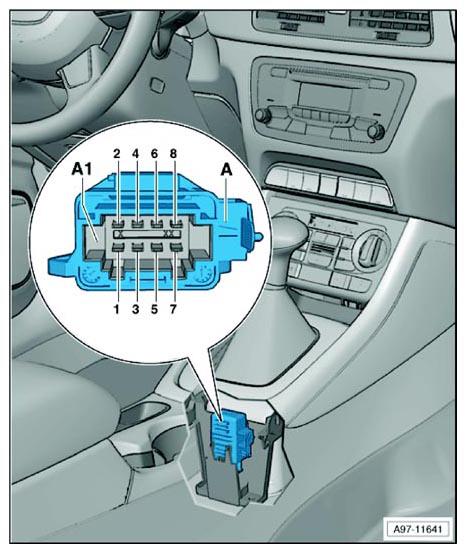

Fig 1: Front Heated Seats Control Module Connector End View (J774, T8z)
Courtesy of AUDI OF AMERICA, LLC
A
Front Heated Seats Control Module -J774-
A1
8-Pin Connector -T8z-, black
Courtesy of AUDI OF AMERICA, LLC
