Steering Column Electronic Systems Control Module -J527-, Location

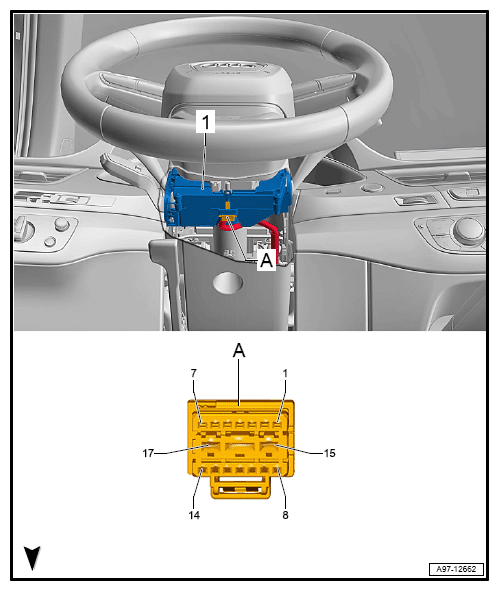

  1. 1  - Steering Column Electronic Systems Control Module -J527-
  2. A  - 17-Pin Connector -T17D-, Yellow
G12767514Courtesy of AUDI
