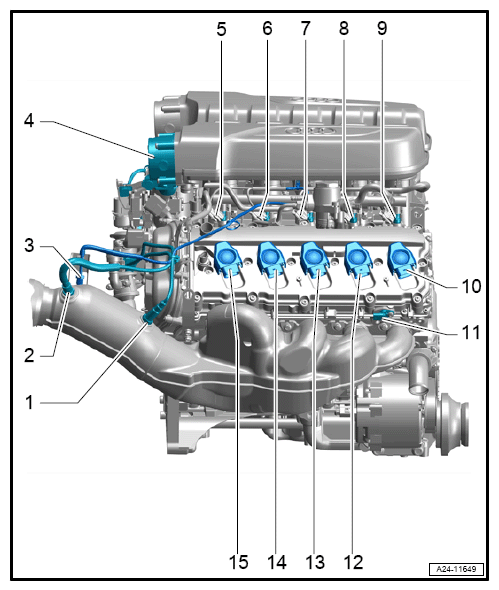

Right View

  1. Heated Oxygen Sensor (HO2S) G39
  2. Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130
  3. Exhaust gas temperature sensor 1 G235
  4. Throttle Valve Control Module J338
  5. Cylinder 5 fuel injector 2 -N536-
  6. Cylinder 4 fuel injector 2 -N535-
  7. Cylinder 3 fuel injector 2 -N534-
  8. Cylinder 2 fuel injector 2 -N533-
  9. Cylinder 1 fuel injector 2 -N532-
  10. Ignition Coil 1 with Power Output Stage -N70-
  11. Camshaft Position (CMP) Sensor 3 -G300-
  12. Ignition Coil 2 with Power Output Stage -N127-
  13. Ignition Coil 3 with Power Output Stage -N291-
  14. Ignition Coil 4 with Power Output Stage -N292-
  15. Ignition Coil 5 with Power Output Stage -N323-
G12778211Courtesy of AUDI
