Comp. LOC. Radio/NAV: Navigation

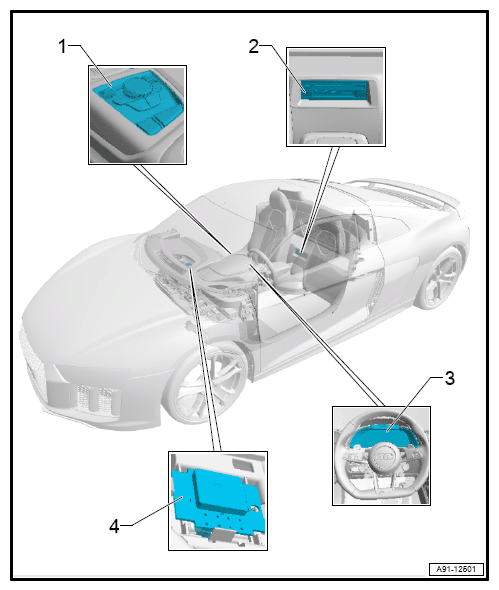

  1. Multimedia system control head E380
  2. Information electronics control module 1 J794
  3. Instrument cluster control module J285
  4. GPS antenna -R50-
G12778219Courtesy of AUDI
