Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING: Removing

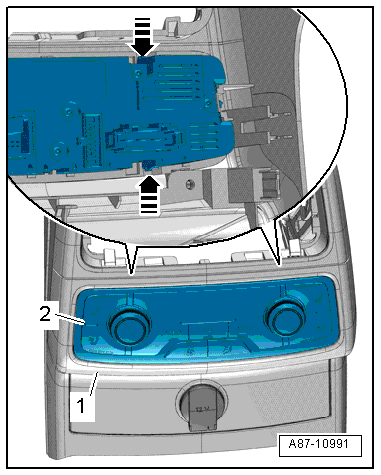

GWWA87-10991Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Release the left and right tabs -arrows-.

-- Press the control head -2- out of the rear cover -1-.
