Airbag Control Module Connector End View (J234, T90)

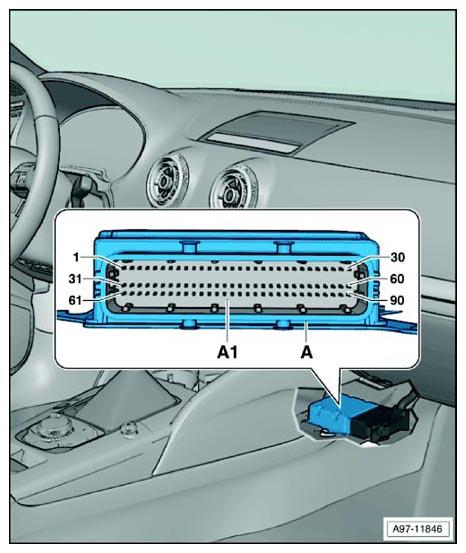

Fig 1: Airbag Control Module Connector End View (J234, T90)
G10360251Courtesy of AUDI OF AMERICA, LLC
A Airbag Control Module -J234-
A1 90-Pin Connector -T90-, yellow
