Distance Regulation Control Module Connector End View (J428, T8M)

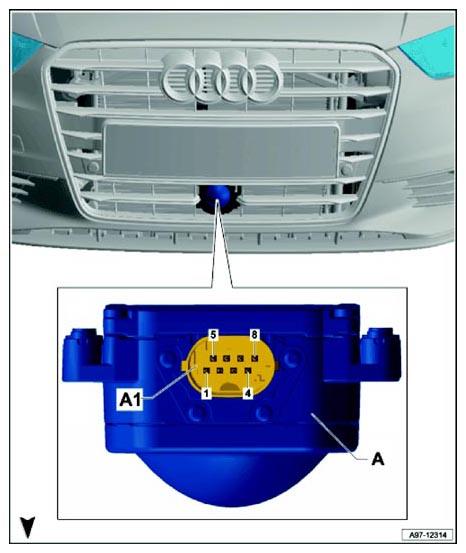

Fig 1: Distance Regulation Control Module Connector End View (J428, T8m)
Courtesy of AUDI OF AMERICA, LLC
A
Distance Regulation Control Module -J428-
A1
8-Pin Connector -T8m-, black
