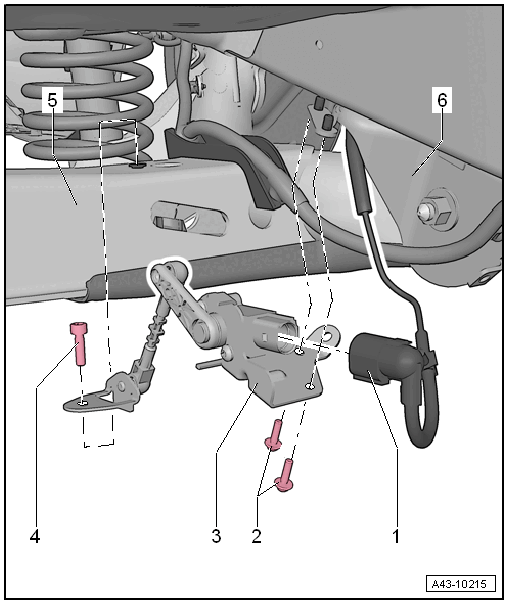

Left Rear Level Control System Sensor -G76-
- Connector
- Bolt
- 5 Nm
- Left Rear Level Control System Sensor -G76-
- Removing and Installing. Refer to Left Rear Level Control System Sensor -G76- .
- If the Left Rear Level Control System Sensor -G76- is remove and installed / replaced or the coupling rod from the level control system sensor is loosened.
- "Re-adapt control position". Refer to Vehicle Diagnostic Tester.
- On vehicles with lane assistance calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Evaluate the need for a basic setting of the headlamps. Refer to HEADLAMP, ADJUSTING .
- Bolt
- 8 Nm
- Axle Beam
- Bracket
