Left/Right Effects Speaker -R209- / -R210-, Removing And Installing, BOSE: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the speaker trim. Refer to appropriate service information. .

-- Release and disconnect the connector from the Left Effects Speaker -R209-.

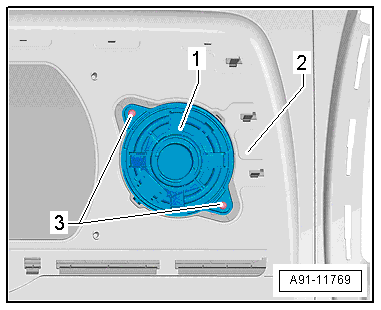

-- Remove the bolts -3- from the Left Effects Speaker -R209- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Left Effects Speaker -R209- -1- from the speaker trim -2-.
