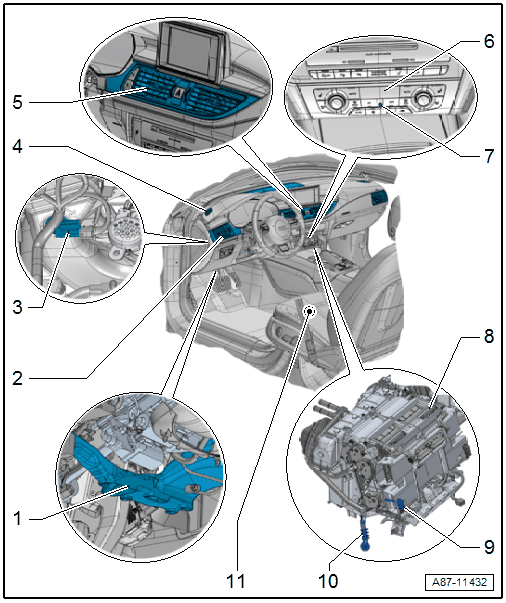

Component Location Overview - Components Inside Front Passenger Compartment, Left Side Of Passenger Compartment
- Left Footwell Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT .
- Left Instrument Panel Vent with Position Sensor in Left Side Vent -G628-
- In the "Comfort" version with Position Sensor in Left Side Vent -G628-.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT
.NOTE:
After replacement of the instrument panel vent, perform an adaptation for the Climatronic Control Module -J255- control head to the end stops on the potentiometer. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- Left Vent Temperature Sensor -G150-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
- An incorrectly installed vent temperature sensor causes flow-generated noise
- Defroster Vent for the Left Side Window
- Left Center Instrument Panel Vent with Position Sensor in Left Center Vent -G626-
- In the "Convenience" version
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT
.NOTE:
After replacement of the instrument panel vent, perform an adaptation for the Climatronic Control Module -J255- control head to the end stops on the potentiometer. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- A/C System Control Head
- Climatronic Control Module -J255-
- There are different versions. Refer to the Parts information.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Infrared Sensor
- For determining the passenger compartment temperature
- A dirty infrared sensor leads to problems regulating the A/C system. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- Heater and A/C Unit, Left Side
- Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE HOUSING .
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Disassembling and assembling. Refer to COMPONENT LOCATION OVERVIEW - HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Left Footwell Vent Temperature Sensor -G261-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
- Left Condensation Water Drain
- Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Left Front Seat
- Depending on the vehicle equipment level with seat heating, seat ventilation
- There are different versions. Refer to the Parts information.
- For information about seat heating function. Refer to SEAT HEATING .
- For information about seat ventilation. Refer to SEAT VENTILATION .
- Seat heating, servicing. Refer to OVERVIEW - SEAT HEATING ELEMENT .
- Seat ventilation, servicing. Refer to COMPONENT LOCATION OVERVIEW - ELECTRIC AND ELECTRONIC COMPONENTS .
