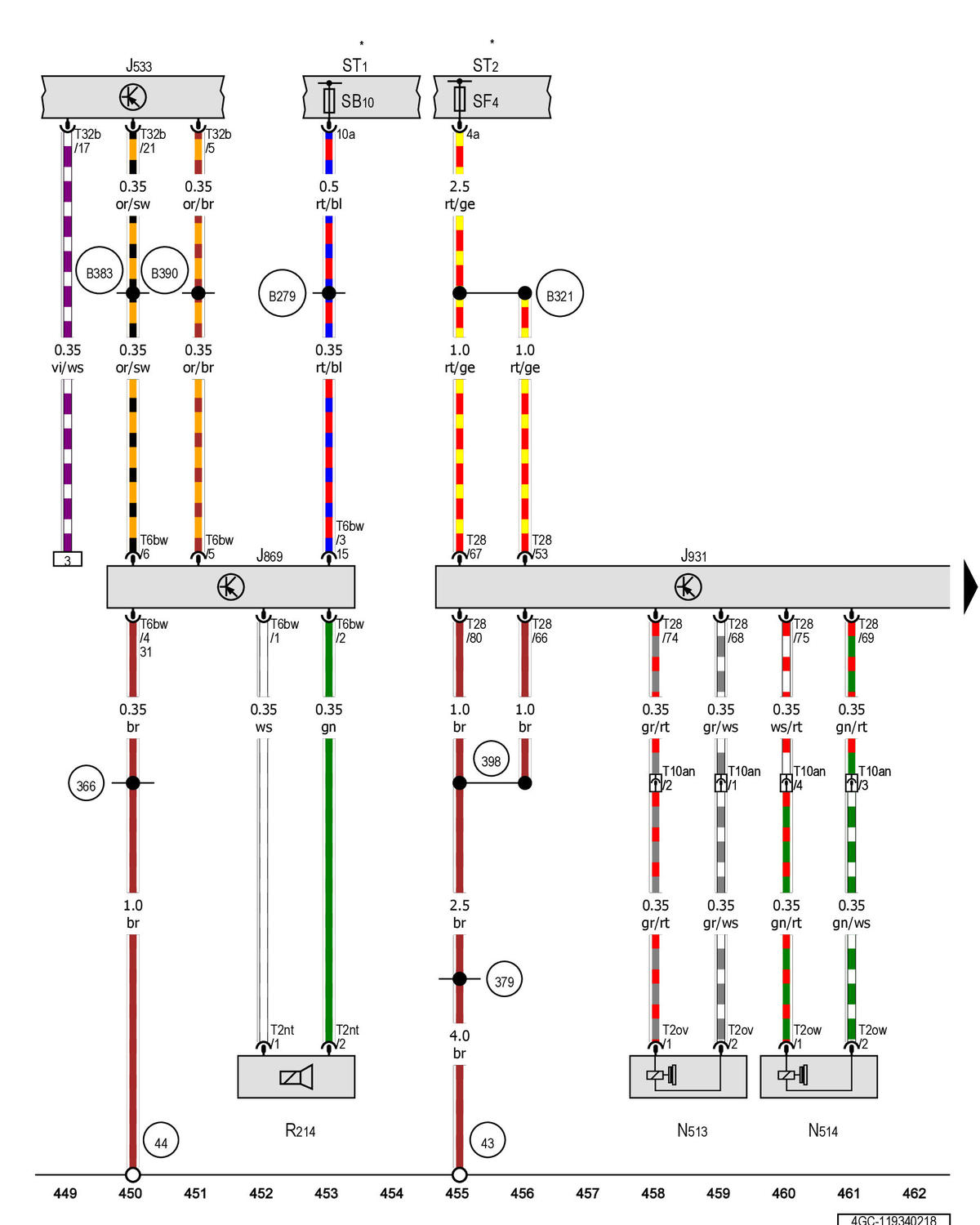

Structure Borne Sound Control Module, Assembly Mount Control Module, Assembly Mount Actuator 1, Structure-Borne Sound Actuator: Notes

GWW4GC-119340218Courtesy of AUDI OF AMERICA, LLC
