Instrument Cluster With Instrument Cluster Control Module -J285-, Removing And Installing, Low/Mid Instrument Cluster: Removing

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Switch off the ignition and place the ignition key outside of the vehicle.

-- Remove the left and right instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

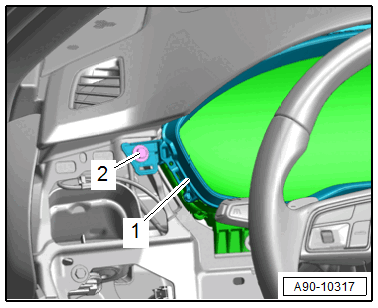

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument cluster trim -1-.

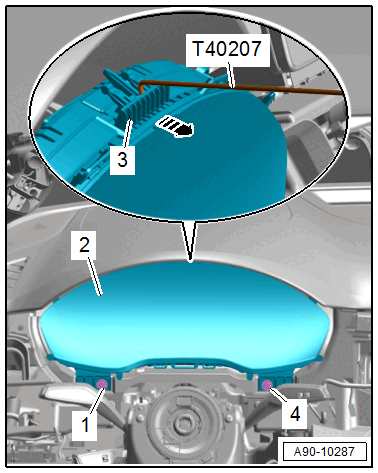

-- Remove the bolts -1 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide the :T40207  between the instrument panel and instrument cluster and attach it in the center as shown -3-.

-- Using the :T40207  , remove the instrument cluster -2- from the retainer in the direction of -arrow- and tilt toward the rear.

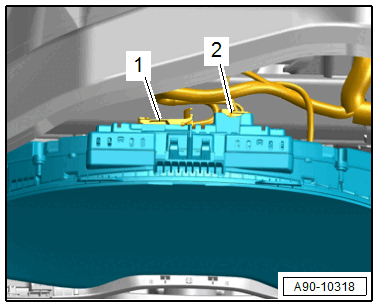

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Mid instrument cluster: Disconnect the connector -2- for the fiber-optic cable.

-- Seal the open wiring harness connector -2- of the fiber-optic cable with the : VAS6223/9  -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

The protective cap prevents contamination of or mechanical damage to the front surface of the fiber-optic cable which would impair light transmission.

-- Remove the instrument cluster on the front passenger side between the steering wheel and the instrument panel.
