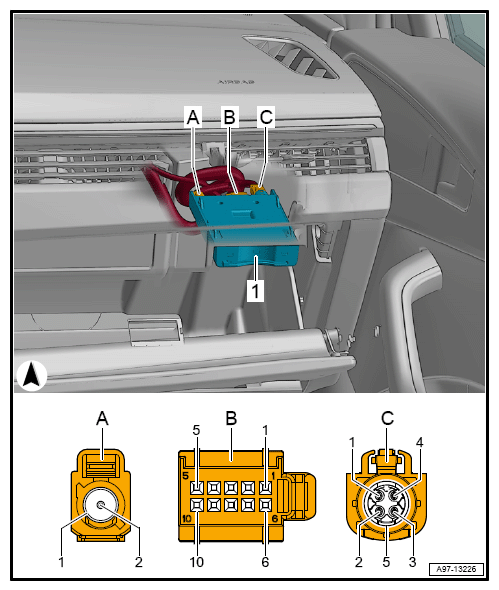

Chip Card Reader Control Module -J676-, Connector View
10-Pin Connector -T10X-/4-Pin Connector -T4FU-/Double Connector -T2IG-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
