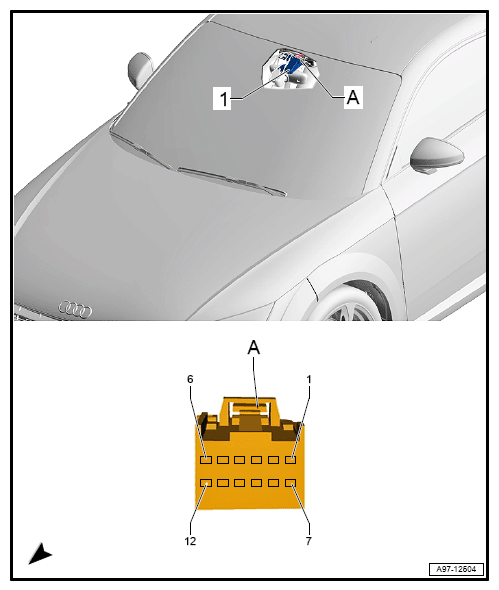

Driver Assistance Systems Front Camera -R242- Connector View
12-Pin Connector -T12K- (A)
| T12k (A) | Designation |
|---|---|
| 1 | CAN-Bus, vehicle electrical system control module, Low |
| 2 | Data-Bus Wire (FlexRay-Bus) |
| 3 | Data-Bus Wire (FlexRay-Bus) |
| 4 | |
| 5 | Terminal 31 |
| 6 | Terminal 15 |
| 7 | CAN-Bus, vehicle electrical system control module, High |
| 8 | Data-Bus Wire (FlexRay-Bus) |
| 9 | Data-Bus Wire (FlexRay-Bus) |
| 10 | |
| 11 | |
| 12 |
