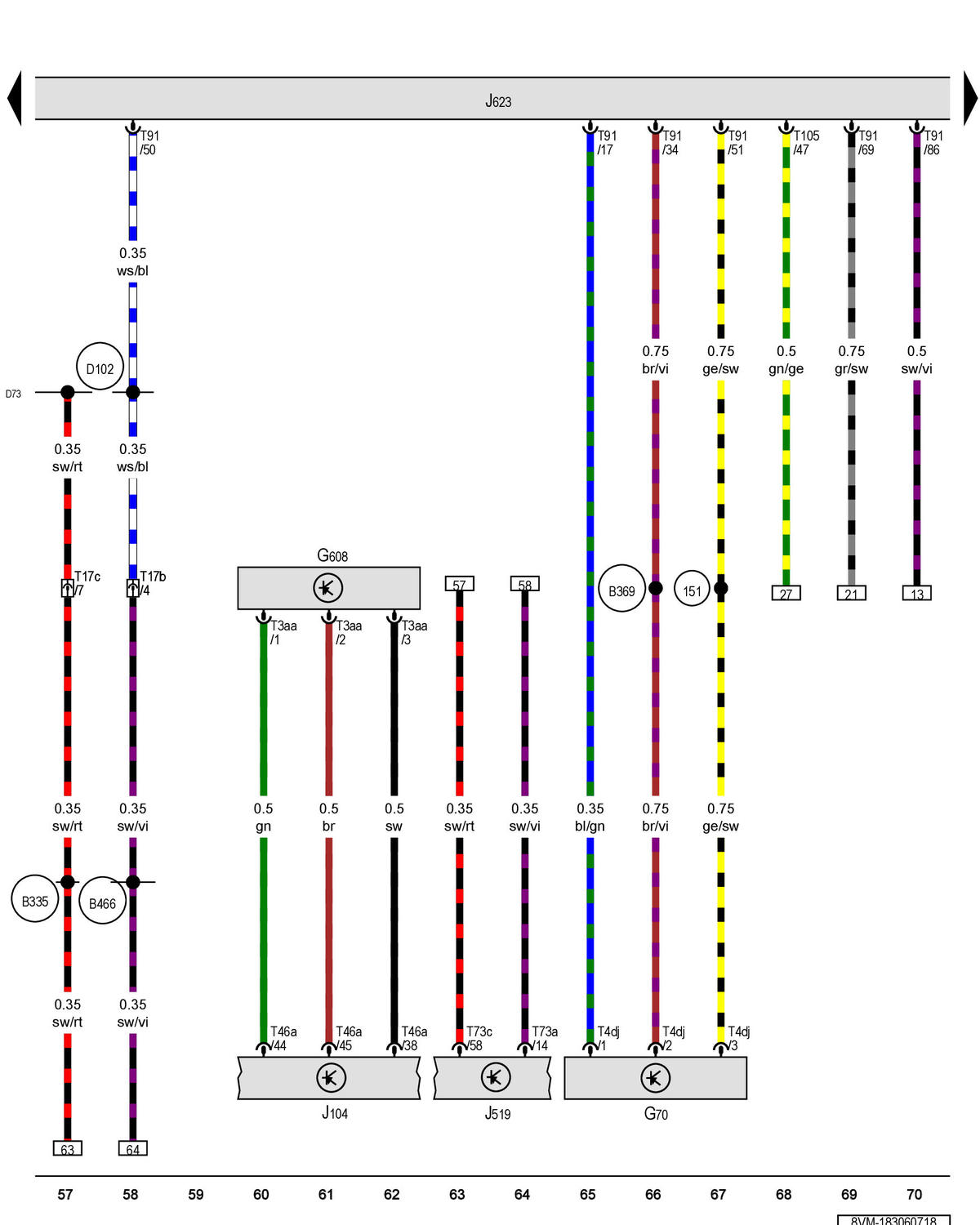

Vacuum Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes

GWW8VM-183060718Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
