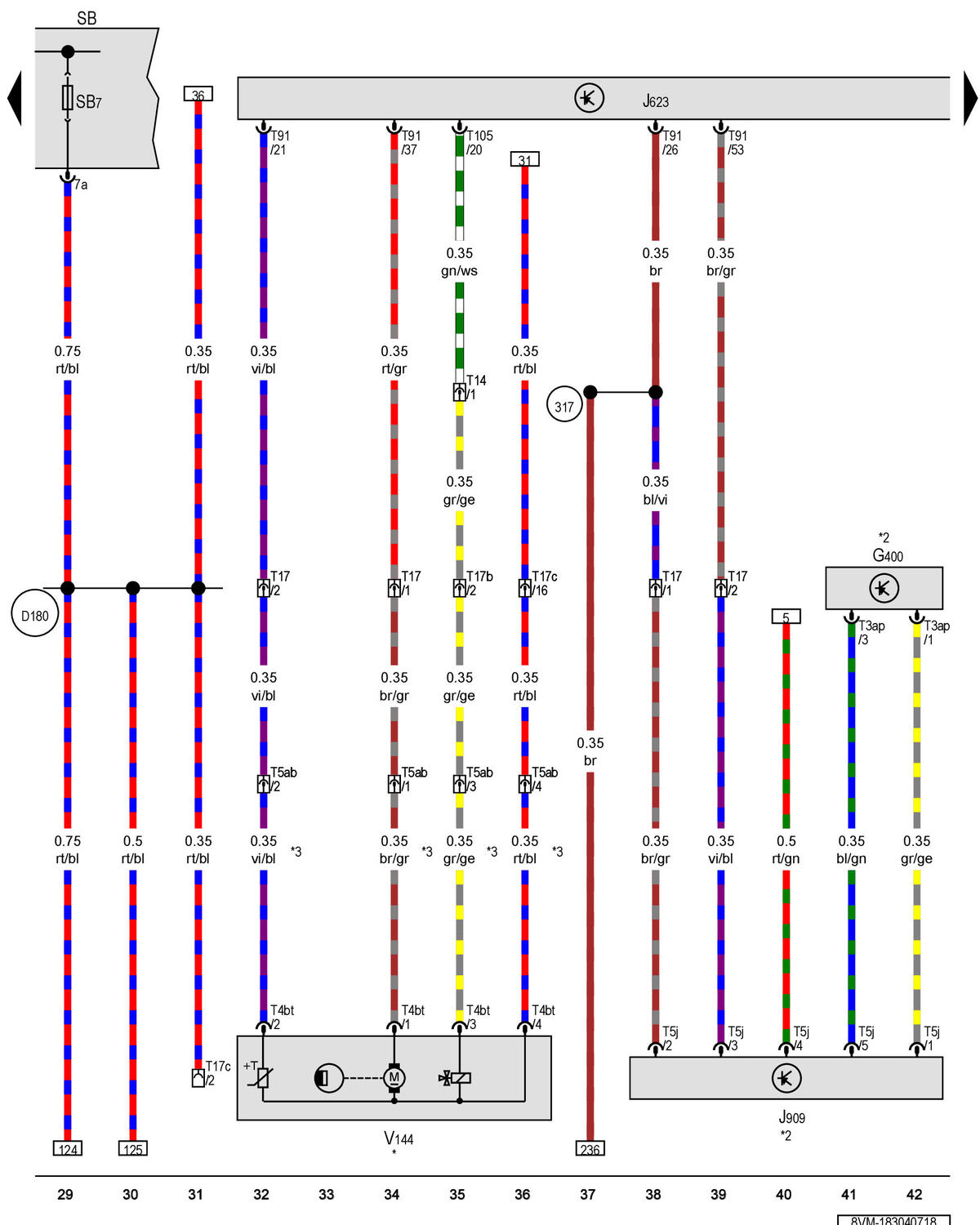

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Fuse Panel B, Leak Detection Pump: Notes

GWW8VM-183040718Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
