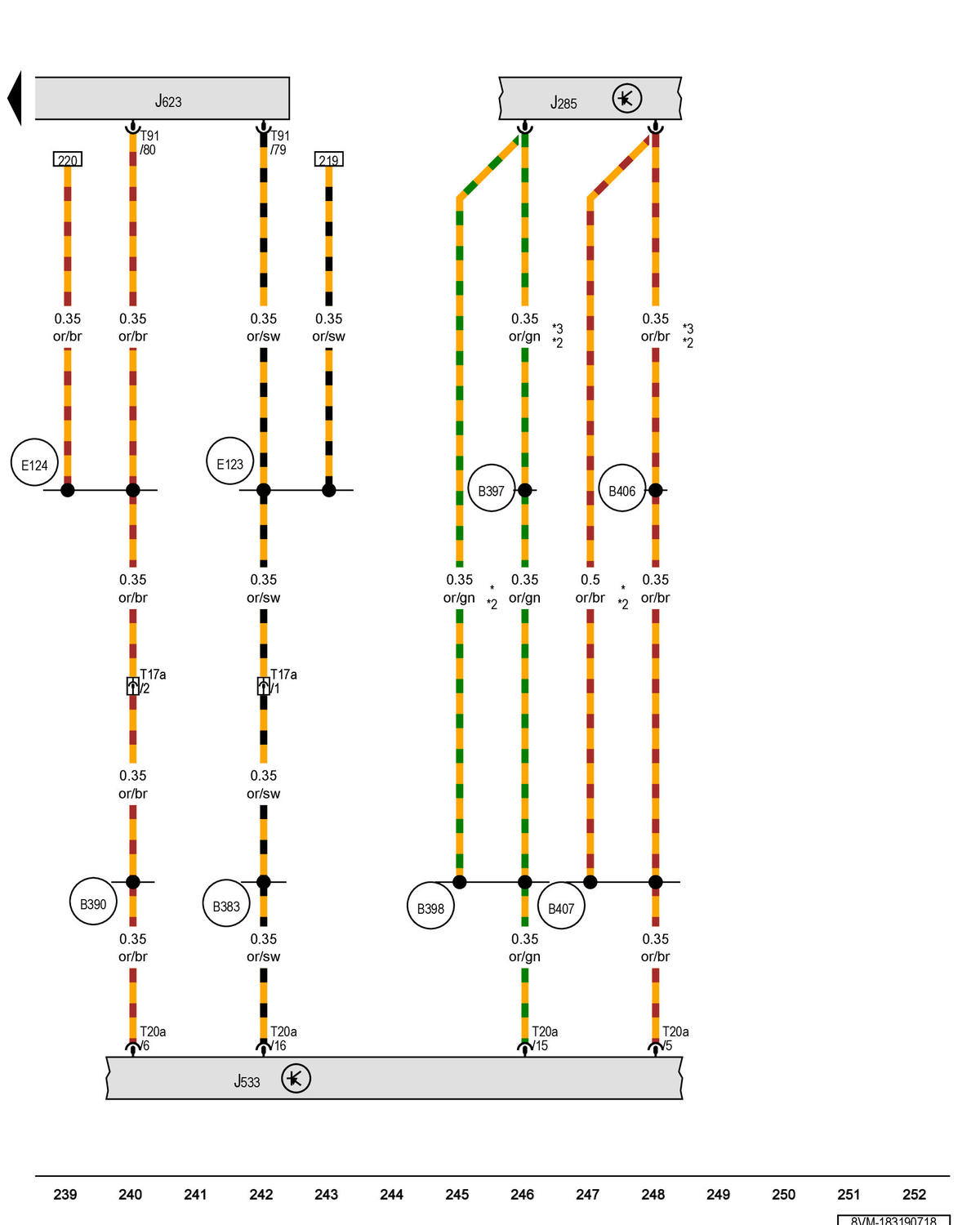

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes

GWW8VM-183190718Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
