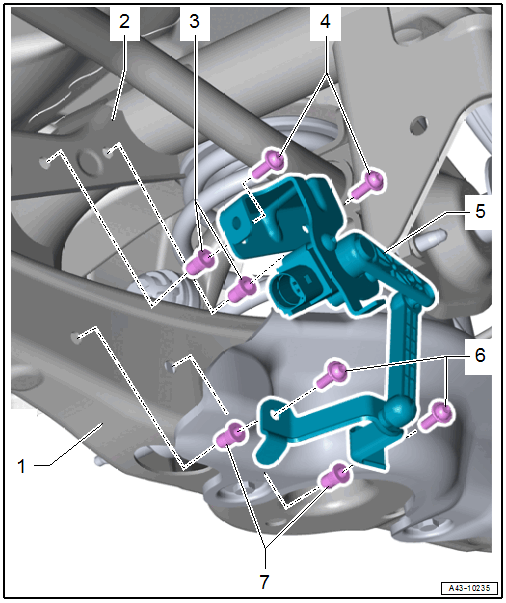

Overview - Rear Level Control System Sensor
WARNING: This page is about a different car, the 2022 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Control Arm
- Subframe
- Pop Rivet Nuts
- Bolts
- 5 Nm
- Left Rear Level Control System Sensor -G76-
- Complete with coupling rod and upper and lower retaining plate
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to Left Rear Level Control System Sensor -G76-, REMOVING AND INSTALLING .
- On vehicles with electronic damping, select the "basic setting" program after installation. Refer to ELECTRONIC DAMPING BASIC SETTING .
- Bolts
- 5 Nm
- Pop Rivet Nuts
