Bevel Box Identification

Pay attention to the different versions of the bevel box:

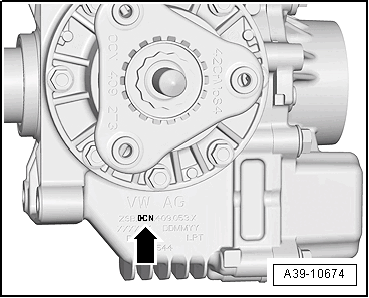

Fig 1: Locating Bevel Box Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The name can be read on the bevel box -arrow-.

• Bevel box "0CN" : The output flange is attached with a twelve-point nut.

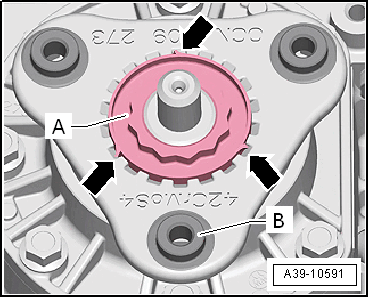

  Fig 2: Securing Twelve-Point Nut -A- By Peenings

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Bevel box "0AV" and "0FV" : The output flange is attached with a hex nut.

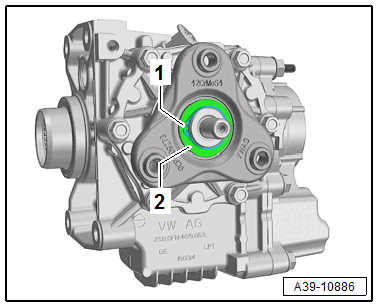

• Bevel box "0FN" : The output flange is attached with a circlip.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Pay attention to the capacity. Refer to CAPACITIES .
