OVERVIEW - Transmission Control Module -J217-

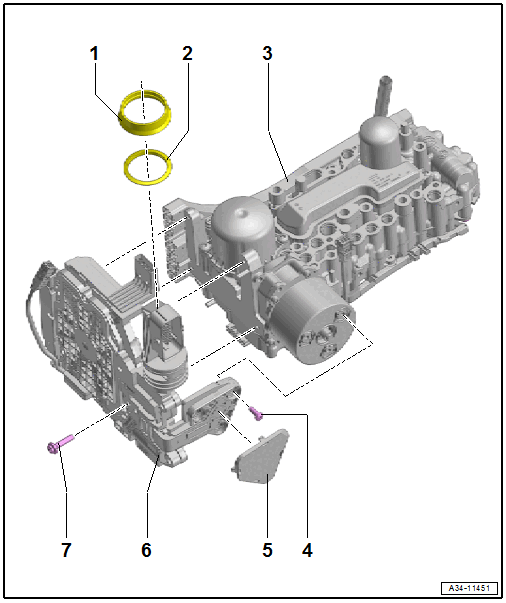

Fig 1: Exploded View Of Transmission Control Module -J217- (0CK, 0CJA, 0CLA, 0DN & 0DPA)

Courtesy of AUDI OF AMERICA, LLC

Protective Cap
- Replace after removing
Seal
- Replace after removing

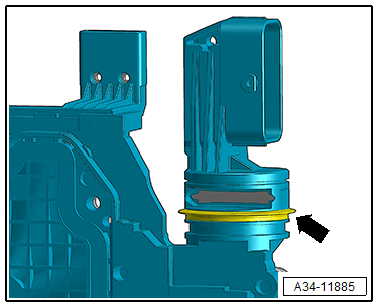

- Refer to Figure
Valve Body
- Overview. Refer to OVERVIEW - VALVE BODY .
Bolt
- 5 Nm + 20°
- Replace after removing
- Quantity: 3
Cover
Transmission Control Module -J217-
- Removing and Installing. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
Bolt
- 3 Nm +90°
- Replace after removing
- Quantity: 4
