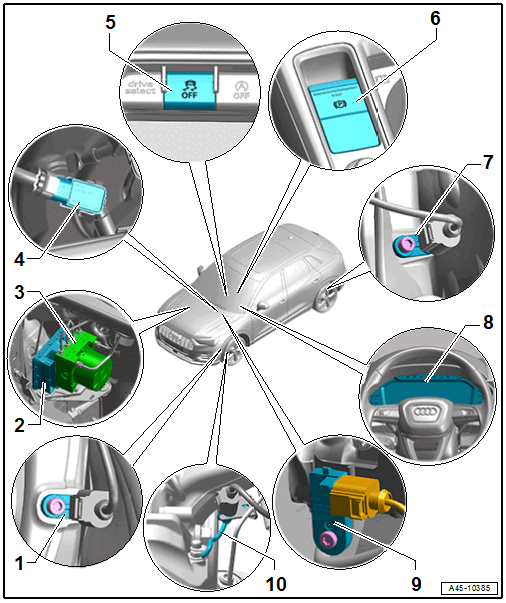

Component Location Overview - Abs/Esp
- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45-
- Left Front ABS Wheel Speed Sensor -G47-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Refer to OVERVIEW - FRONT AXLE SPEED SENSOR
- ABS Control Module -J104-
- Component location: in the right rear engine compartment
- With
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Longitudinal Acceleration Sensor -G251-
- Electromechanical Parking Brake Control Module -J540-
- The components cannot be replaced separately
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- ABS Hydraulic Unit -N55-
- With
- Brake Pressure Sensor 1 -G201-
- ABS Hydraulic Pump -V64-
- Valve block with intake and exhaust valves
- The components cannot be replaced separately
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- With
- Vacuum Sensor -G608-
- For TFSI engine with mechanical vacuum pump
- Refer to OVERVIEW - VACUUM PUMP
- Switch Module in Instrument Panel, Center -EX22-
- With
- ASR/ESP Button -E256-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- With
- Parking Brake Button -EX12-
- With
- Electromechanical Parking Brake Button -E538-
- Electromechanical Parking Brake Indicator Lamp -K213-
- Component location, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- With
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Refer to OVERVIEW - REAR AXLE SPEED SENSOR
- Instrument Cluster with Instrument Cluster Control Module -J285-
- The indicator lamps cannot be replaced separately
- Replace the instrument cluster if faulty. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Brake Lamp Switch -F-
- Component location: on the brake master cylinder
- Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER
- Steering Gear
- With Steering Angle Sensor -G85-
- The steering angle sensor cannot be replaced separately
