Brake Lines, Attaching To Hydraulic Unit

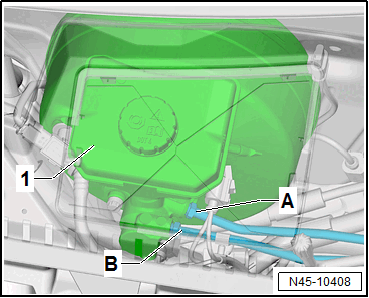

On the Brake Master Cylinder:
A - Master Brake Cylinder Primary Piston Circuit to Hydraulic Unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
B - Master Brake Cylinder Secondary Piston Circuit to Hydraulic Unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread

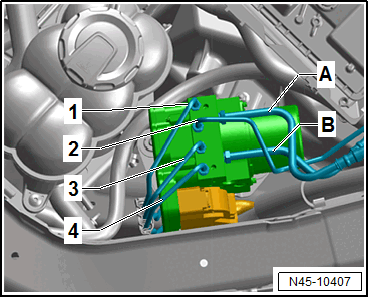

On the Hydraulic Unit:
1 - Hydraulic Unit to Left Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
2 - Hydraulic Unit to Right Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 short thread
3 - Hydraulic Unit to Left Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 short thread
4 - Hydraulic Unit to Right Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
A - Hydraulic Unit to Master Brake Cylinder Primary Piston Circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
B - Hydraulic Unit to Master Brake Cylinder Secondary Piston Circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
