Overview - Data Bus On Board Diagnostic Interface

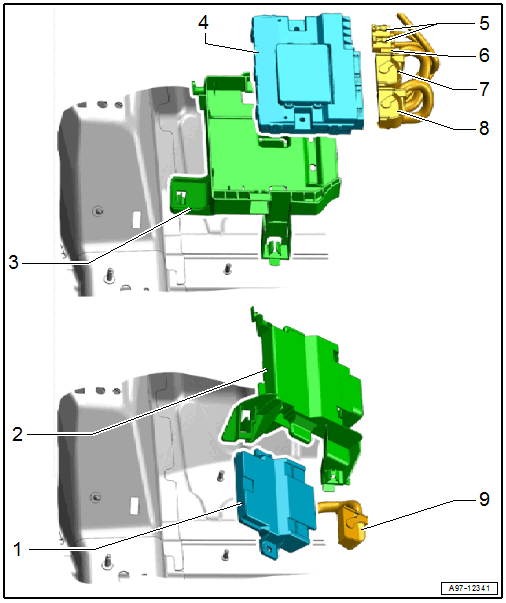

Fig 1: DATA BUS On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

1. Data Bus On Board Diagnostic Interface -J533- - Low
   • Removing and installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, LOW VERSION .
2. Mount
   • For the Data Bus On Board Diagnostic Interface -J533- - Low
3. Mount
   • For the Data Bus On Board Diagnostic Interface -J533- - High
4. Data Bus On Board Diagnostic Interface -J533- - High
   • With Telematics Emergency Battery
   • Emergency Battery, Removing and Installing. Refer to CONNECTED GATEWAY, REPLACING EMERGENCY BATTERY .
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, HIGH VERSION .
5. Fiber Optic Cable Connector
   • Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
   • Quantity: 2
6. Antenna Wire Connector
7. Connector
   • For the Data Bus On Board Diagnostic Interface -J533- - High
8. Connector
   • For the Data Bus On Board Diagnostic Interface -J533- - High
9. Connector
   • For the Data Bus On Board Diagnostic Interface -J533- - Low
