Left And Right Rear Subwoofer -R239- / -R240-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the backrest frame on the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

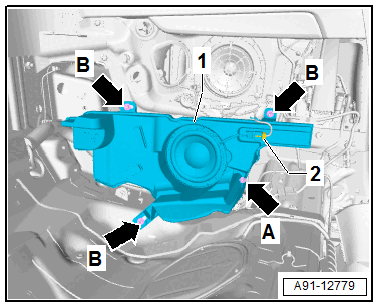

-- Release and disconnect the connector -2- from the Left Rear Subwoofer -R239- -1-.
-- Remove the bolt -arrow A- from the Left Rear Subwoofer -R239- -1-.
-- Remove the nuts -B arrows- from the Left Rear Subwoofer -R239- -1-.
-- Remove the Left Rear Subwoofer -R239- -1-.
