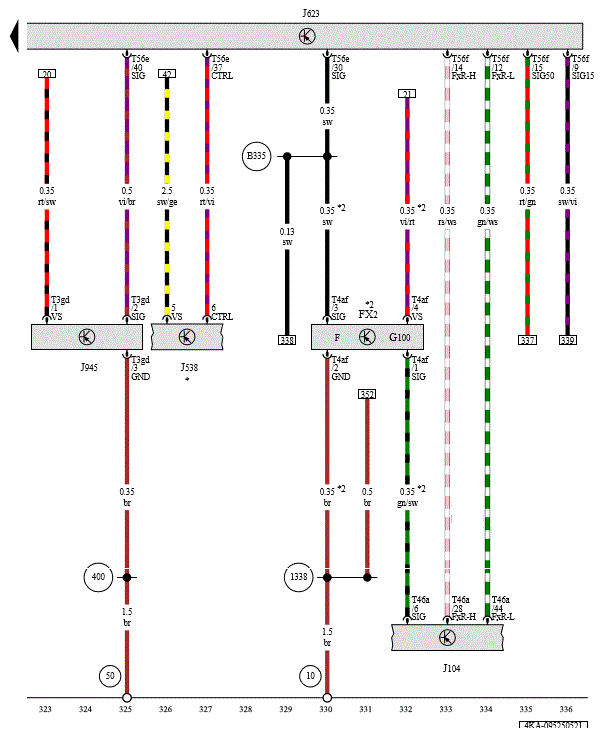

Brake Pedal Switch, Abs Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Exhaust Door Control Unit 2: Notes

G005894367Courtesy of AUDI OF AMERICA, LLC
