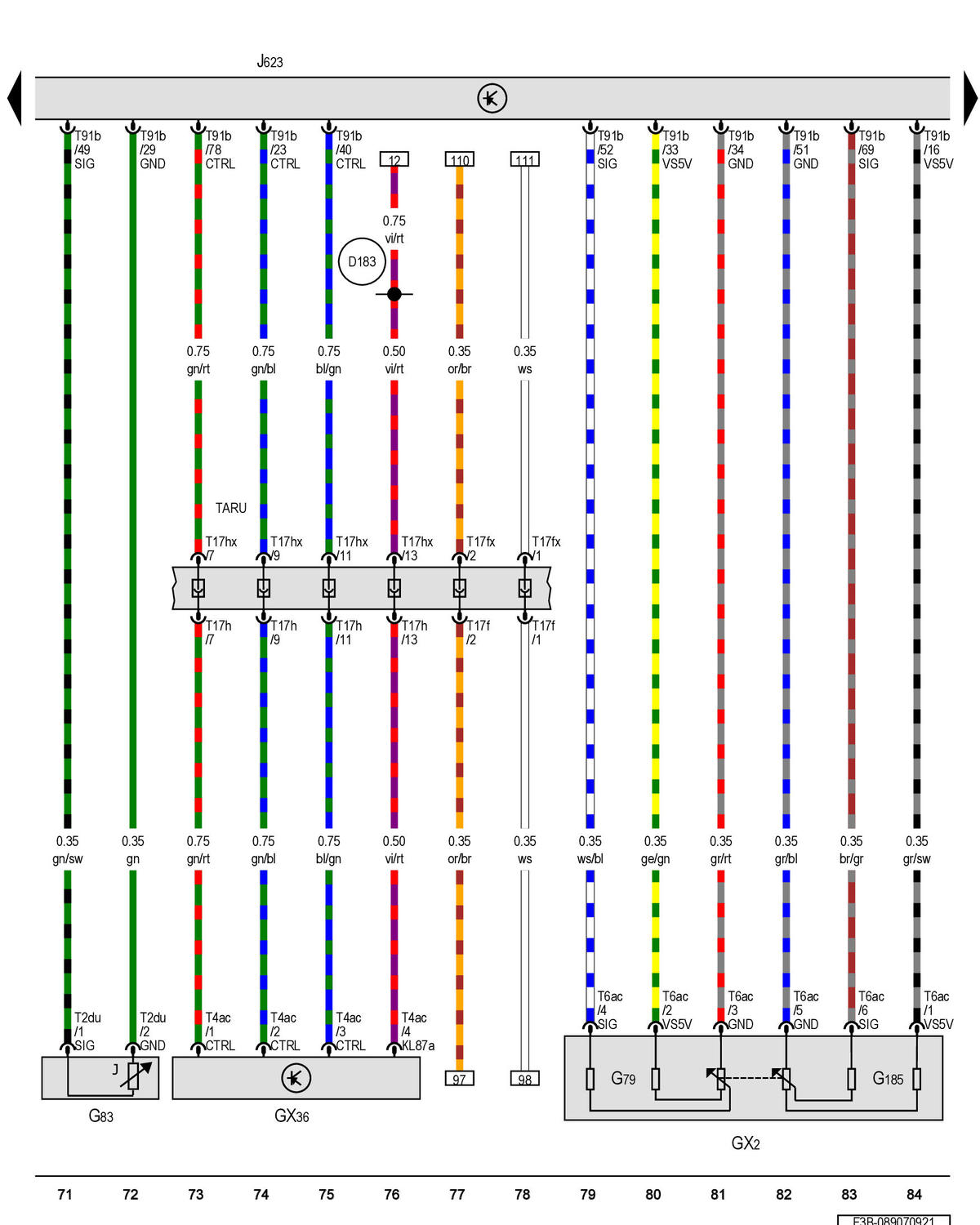

Accelerator Pedal Module, Fuel Tank Leak Detection Module, Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX2

Accelerator Pedal Module Type:BT, Slpdok:, Aim:BTGX2

GX36

Fuel Tank Leak Detection Module Type:BT, Slpdok:, Aim:BTGX36

G79

Accelerator Pedal Position Sensor

G83

Engine Coolant Temperature Sensor on Radiator Outlet Type:BT, Slpdok:, Aim:BTG83

G185

Accelerator Pedal Position Sensor 2

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T2du

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2du

T4ac

4-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT4ac

T6ac

6-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT6ac

T17f

17-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT17f Type:VA, Slpdok:, Aim:VAT17f

T17fx

17-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT17fx Type:VA, Slpdok:, Aim:VAT17fx

T17h

17-Pin Connector, Red Type:BT, Slpdok:, Aim:BTT17h Type:VA, Slpdok:, Aim:VAT17h

T17hx

17-Pin Connector, Red Type:BT, Slpdok:, Aim:BTT17hx Type:VA, Slpdok:, Aim:VAT17hx

T91b

91-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT91b

TARU

Coupling Point on Right A-Pillar, Bottom

D183

Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)
