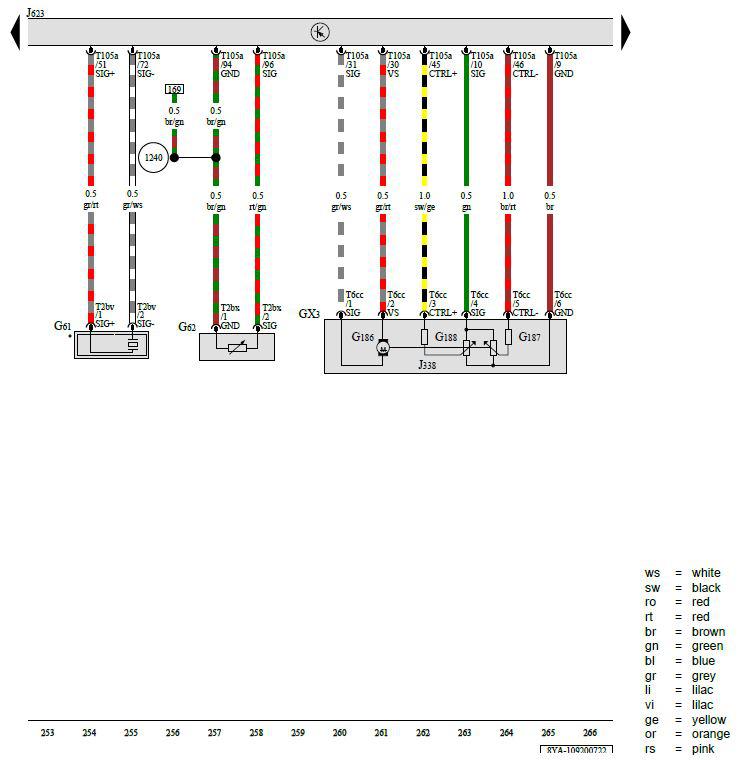

Throttle Valve Control Module, Knock Sensor 1, Engine Coolant Temperature Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX3 -  Throttle Valve Control Module

G61 -  Knock Sensor 1

G62 -  Engine Coolant Temperature Sensor

G186 -  EPC Throttle Drive

G187 -  EPC Throttle Drive Angle Sensor 1

G188 -  EPC Throttle Drive Angle Sensor 2

J338 -  Throttle Valve Control Module

J623 -  Engine/Motor Control Module

T2bv -  2-Pin Connector, Black

T2bx -  2-Pin Connector, Black

T6cc -  6-Pin Connector, Black

T105a -  105-Pin Connector, Black

1240 -  Ground Connection (Engine Ground) (in The Engine Pre-Wiring Harness)

* -  Pre-Wired Component
