Overview - ATF Circuit: Notes

ATF Cooler, ATF Line

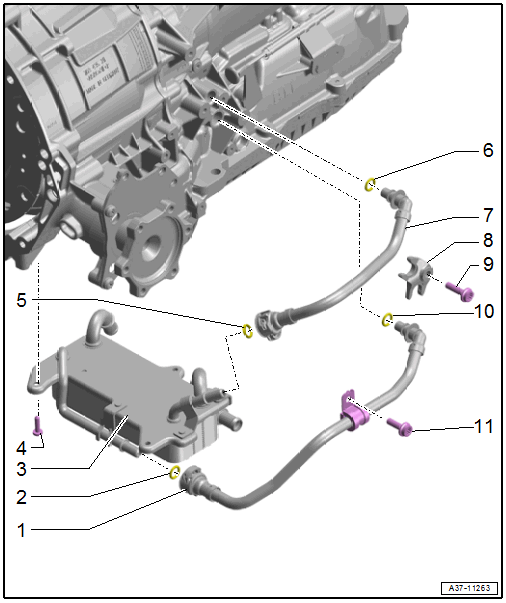

Fig 1: Exploded View Of ATF Circuit

Courtesy of AUDI OF AMERICA, LLC

1. ATF Line
   • Cleaning. Refer to Clean .
   • Install all the way by hand with a new O-ring
2. O-Ring
   • Replace if the ATF line leaks
   • Coat with ATF before installing
3. ATF Cooler
   • Removing and installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
4. Bolt
   • 8 Nm
5. O-Ring
   • Replace if the ATF line leaks
   • Coat with ATF before installing
6. O-Ring
   • Replace if the ATF line leaks
   • Coat with ATF before installing
7. ATF Line
   • Cleaning. Refer to Clean .
   • Install all the way by hand with a new O-ring
8. Bracket
9. Bolt
   • 20 Nm
10. O-Ring
    • Replace if the ATF line leaks
    • Coat with ATF before installing
11. Bolt
    • 20 Nm

Disconnect the ATF Line

Fig 2: Disconnect the ATF Line

Courtesy of AUDI OF AMERICA, LLC

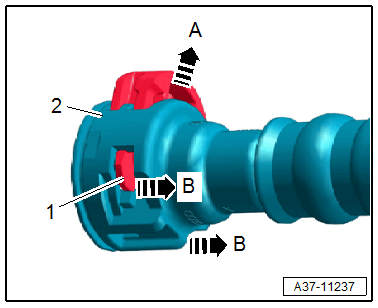

-- Release the clip -1- from the connector coupling -2- in direction of -B arrows- and lift in direction of -A arrows-.

-- Remove the connector coupling.
