Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, REMOVING AND INSTALLING: Removing

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

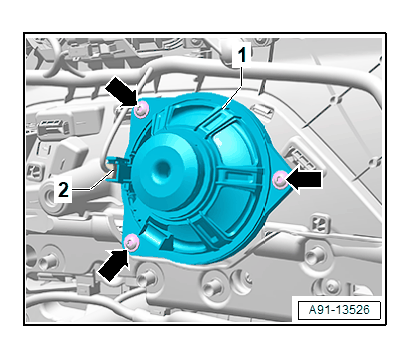

GWWA91-13526Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the speaker -1-.
