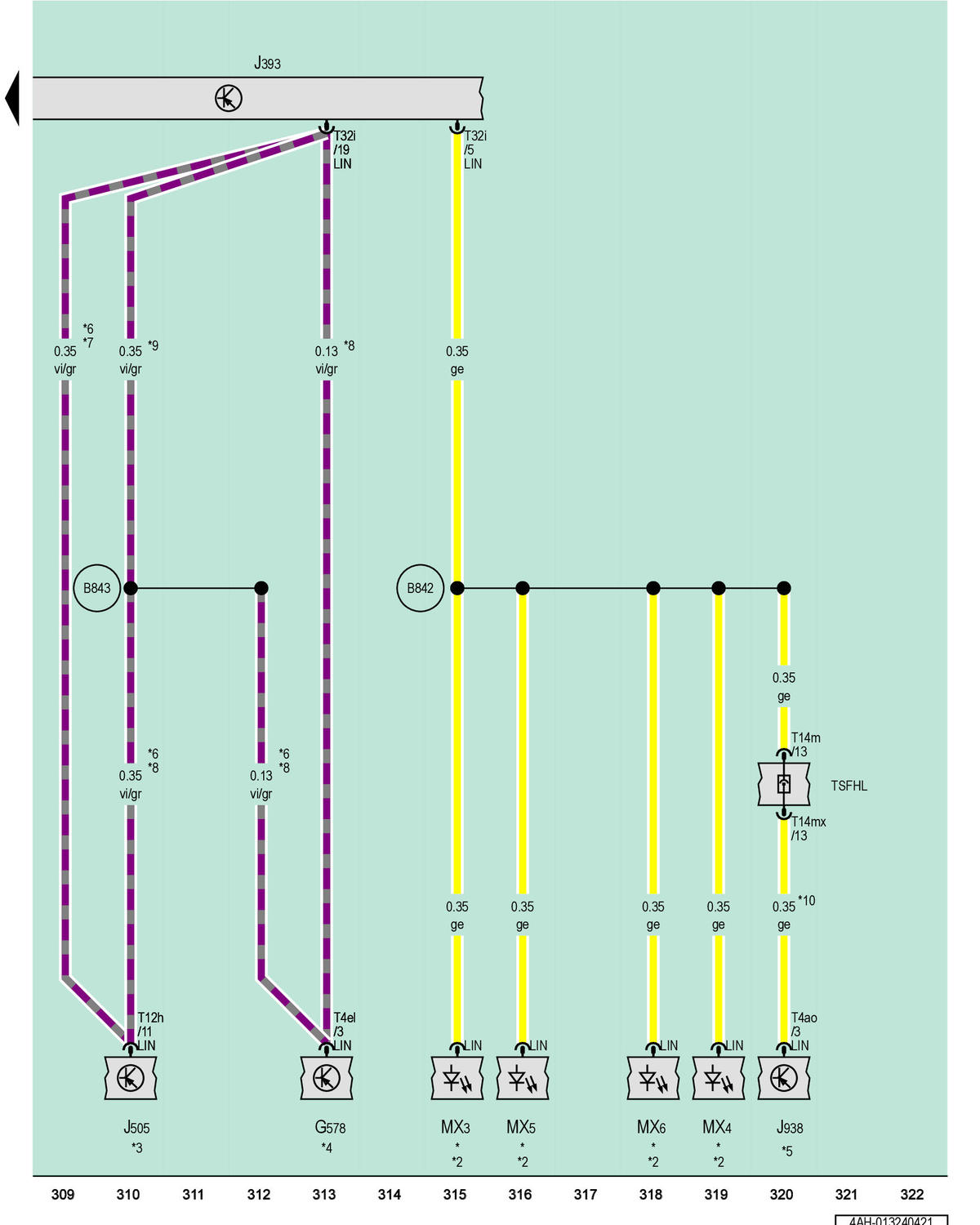

Anti-Theft Alarm System Sensor, Comfort System Central Control Module, Windshield Defogger Control Module, Power Rear Lid Opening Control Module, Left Tail Lamp 2, Right Tail Lamp 2
G578
Anti-Theft Alarm System Sensor
J393
Comfort System Central Control Module
J505
Windshield Defogger Control Module
J938
Power Rear Lid Opening Control Module
MX3
Left Tail Lamp
MX4
Right Tail Lamp
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
T4ao
4-Pin Connector, Black
T4el
4-Pin Connector, Black
T12h
12-Pin Connector, Black
T14m
14-Pin Connector, Black
T14mx
14-Pin Connector, Black
T32i
32-Pin Connector, Naturally Cloudy, Black
TSFHL
Coupling Point on Left Rear Bumper
B842
LIN Bus Connection 8 (in Main Wiring Harness)
B843
LIN Bus Connection 9 (in Main Wiring Harness)
*
For Vehicles with LED Tail Lamps
*2
Refer to Applicable Wiring Diagram
*3
Refer to Applicable Windshield Defogger Wiring Diagram
*4
Refer to Applicable Convenience System Wiring Diagram
*5
Refer to Applicable Power Rear Lid Wiring Diagram
*6
For Vehicles with Windshield Defogger
*7
For Vehicles Without Anti-Theft Alarm System
*8
For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*9
Depending on Equipment
*10
Optional Equipment
