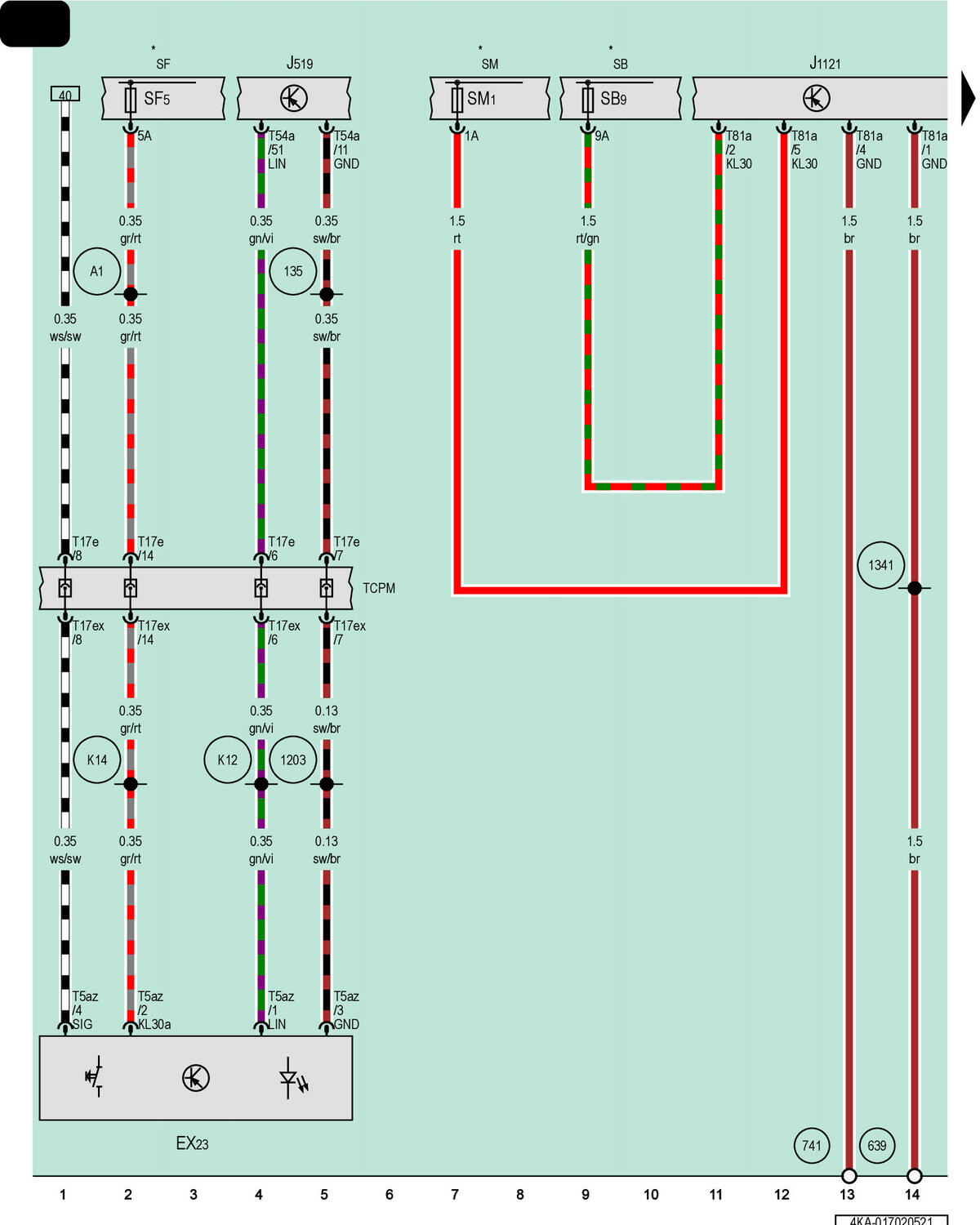

Center Console Switch Module 1, Vehicle Electrical System Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

EX23

Center Console Switch Module 1

J519

Vehicle Electrical System Control Module

J1121

Driver Assistance Systems Control Module

SB

Fuse Panel B

SB9

Fuse 9 (On Fuse Panel B)

SF

Fuse Panel F

SM

Fuse Panel M

SM1

Fuse 1 on Fuse Panel M

SF5

Fuse 5 (On Fuse Panel F)

T5az

5-Pin Connector, Black

T17e

17-Pin Connector, Black

T17ex

17-Pin Connector, Black

T54a

54-Pin Connector, Black

T81a

81-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

135

Ground Connection 2 (in Instrument Panel Wiring Harness)

639

Ground Connection on Left A-Pillar

741

Ground Connection Under Left Front Seat

1203

Ground Connection (in Center Console Wiring Harness)

1341

Ground Connection 43 (in Main Wiring Harness)

A1

Positive Connection 30a (in Instrument Panel Wiring Harness)

K12

LIN Bus Connection (in Center Console Wiring Harness)

K14

Connection (30) (in Center Console Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
