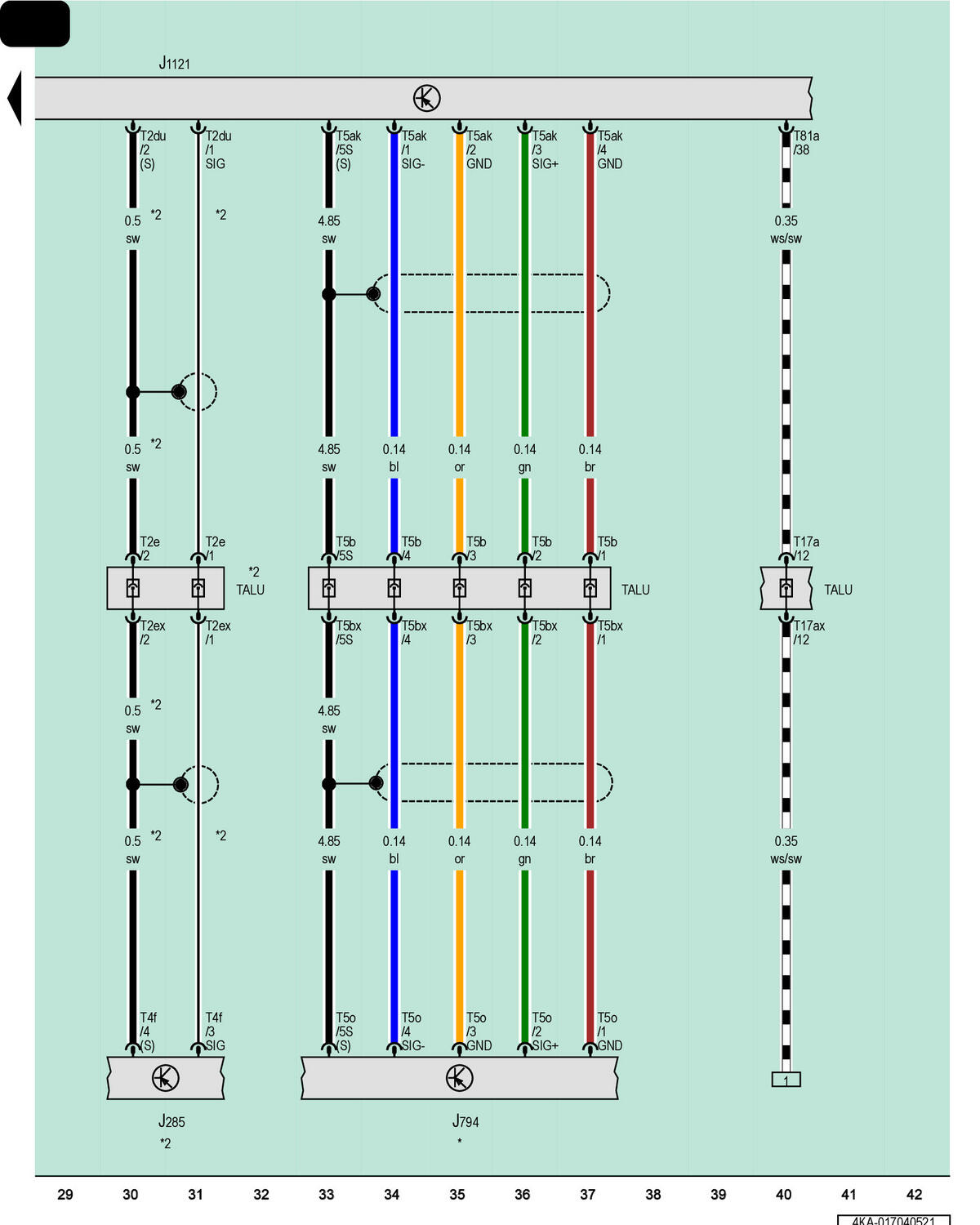

Instrument Cluster Control Module, Information Electronics Control Module 1, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

J1121

Driver Assistance Systems Control Module

T2du

2-Pin Connector, Naturally Cloudy

T2e

2-Pin Connector, Brown

T2ex

2-Pin Connector, Brown

T4f

4-Pin Connector, Black

T5ak

5-Pin Connector, Black

T5b

5-Pin Connector, White

T5bx

5-Pin Connector, White

T5o

5-Pin Connector, Green

T17a

17-Pin Connector, White

T17ax

17-Pin Connector, White

T81a

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2

Depending on Equipment
