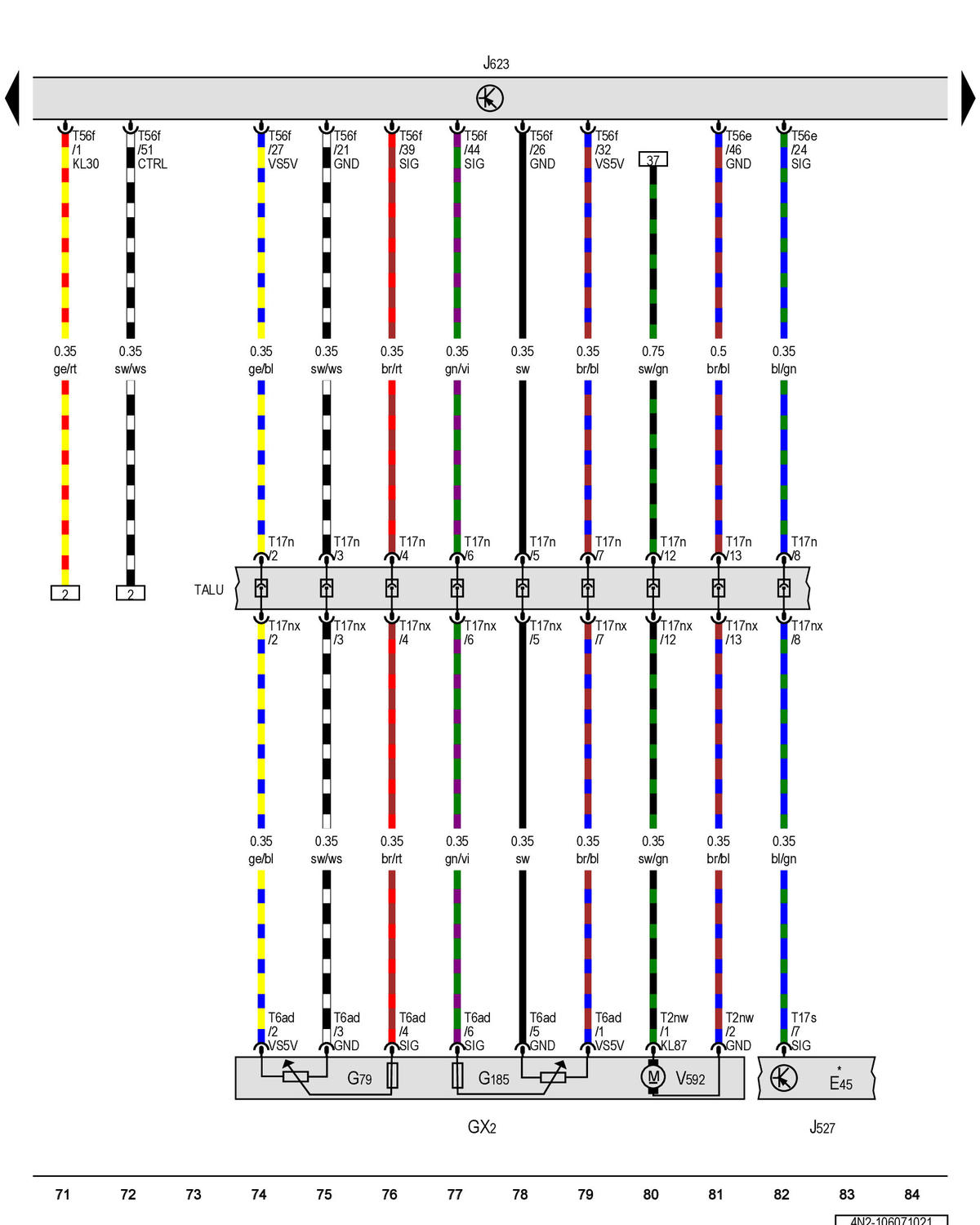

Accelerator Pedal Module, Steering Column Electronics Control Module, Engine/Motor Control Module

GWW4N2-106071021Courtesy of AUDI OF AMERICA, LLC

E45

Cruise Control Switch

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

T2nw

2-Pin Connector, Black

T6ad

6-Pin Connector, Black

T17n

17-Pin Connector, White

T17nx

17-Pin Connector, White

T17s

17-Pin Connector, Yellow

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TALU

Coupling Point on Left A-Pillar, Bottom

V592

Active Accelerator Pedal Motor

*  For Vehicles with Cruise Control System
