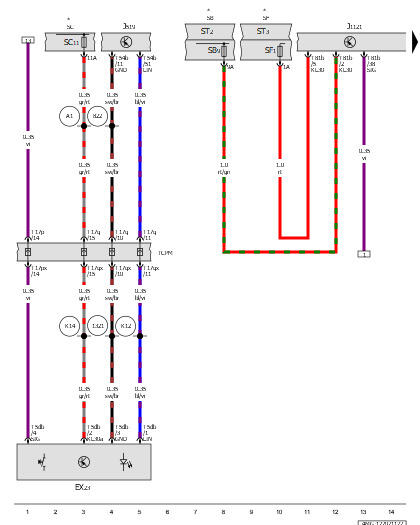

Center Console Switch Module 1, Vehicle Electrical System Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI

EX23

Center Console Switch Module 1

J519

Vehicle Electrical System Control Module

J1121

Driver Assistance Systems Control Module

SB

Fuse Panel B

SC

Fuse Panel C

SF

Fuse Panel F

SF1

Fuse 1 (On Fuse Panel F)

ST2

Fuse Panel 2

ST3

Fuse Panel 3

SB9

Fuse 9 (On Fuse Panel B)

SC11

Fuse 11 (On Fuse Panel C)

T5db

5-Pin Connector, Black

T17p

17-Pin Connector, Black

T17px

17-Pin Connector, Black

T17q

17-Pin Connector, Black

T17qx

17-Pin Connector, Black

T54b

54-Pin Connector, Black

T81b

81-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

822

Ground Connection 8 (in Instrument Panel Wiring Harness)

1321

Ground Connection 2 (in Center Console Wiring Harness)

A1

Positive Connection 30a (in Instrument Panel Wiring Harness)

K12

LIN Bus Connection (in Center Console Wiring Harness)

K14

Connection (30) (in Center Console Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
