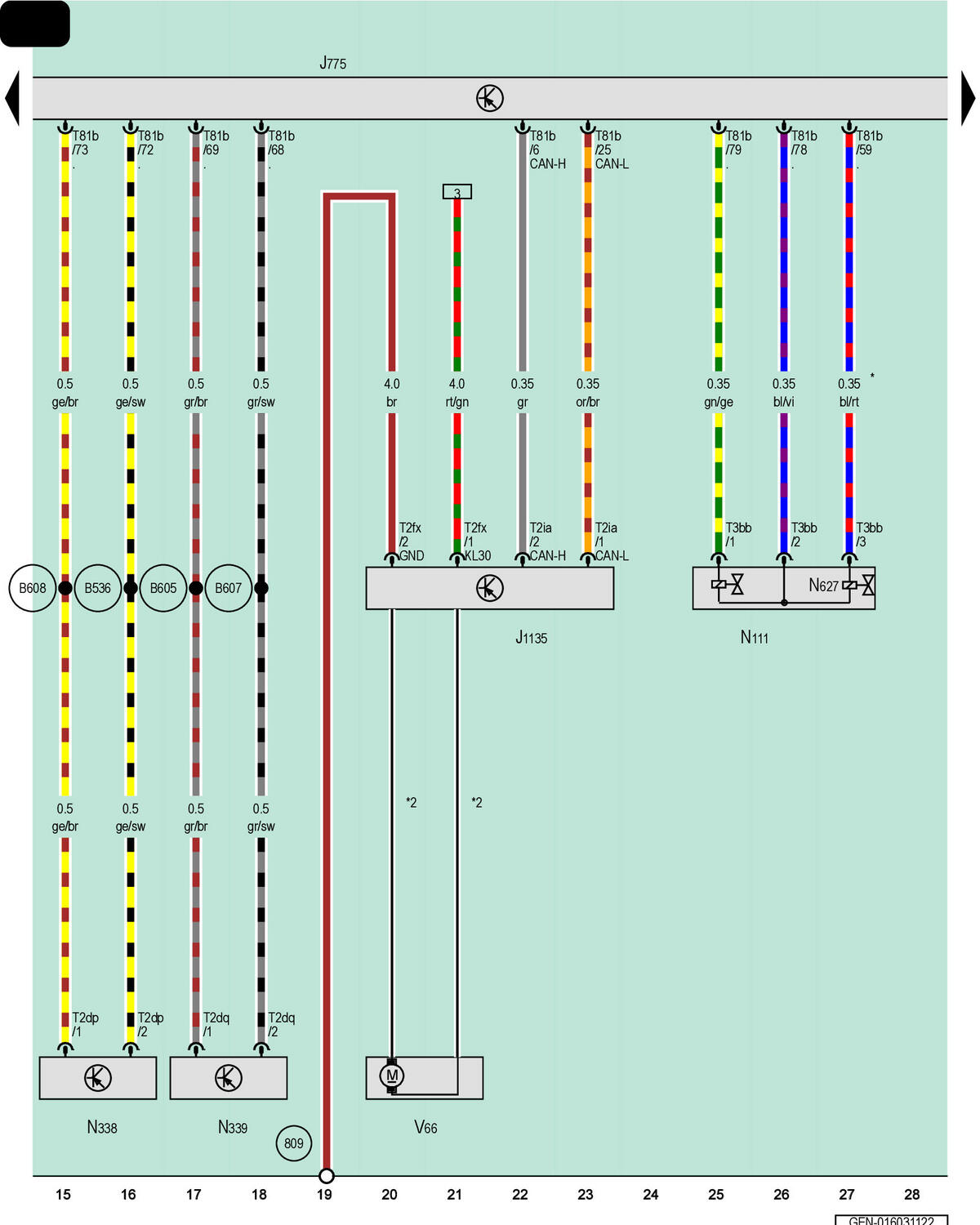

Drivetrain Control Module, Level Control System Compressor Electronics, Level Control System Solenoid, Left Rear Damping Adjustment Valve, Right Rear Damping Adjustment Valve, Level Control System Compressor Motor

Courtesy of AUDI OF AMERICA, LLC

J775

Drivetrain Control Module

J1135

Level Control System Compressor Electronics

N111

Level Control System Solenoid

N338

Left Rear Damping Adjustment Valve

N339

Right Rear Damping Adjustment Valve

N627

Air Spring Quick Fill Valve

T2dp

2-Pin Connector, Black

T2dq

2-Pin Connector, Black

T2fx

2-Pin Connector, Brown

T2ia

2-Pin Connector, Black

T2mz

2-Pin Connector

T2na

2-Pin Connector

T3bb

3-Pin Connector, Black

T81b

81-Pin Connector, Black

V66

Level Control System Compressor Motor

809

Ground Connection on Left Rear Underbody

B536

Connection 27 (in Main Wiring Harness)

B605

Connection 1 (in Interior Wiring Harness)

B607

Connection 3 (in Interior Wiring Harness)

B608

Connection 4 (in Interior Wiring Harness)

Omitted as a Running Change

Adapter Cable
