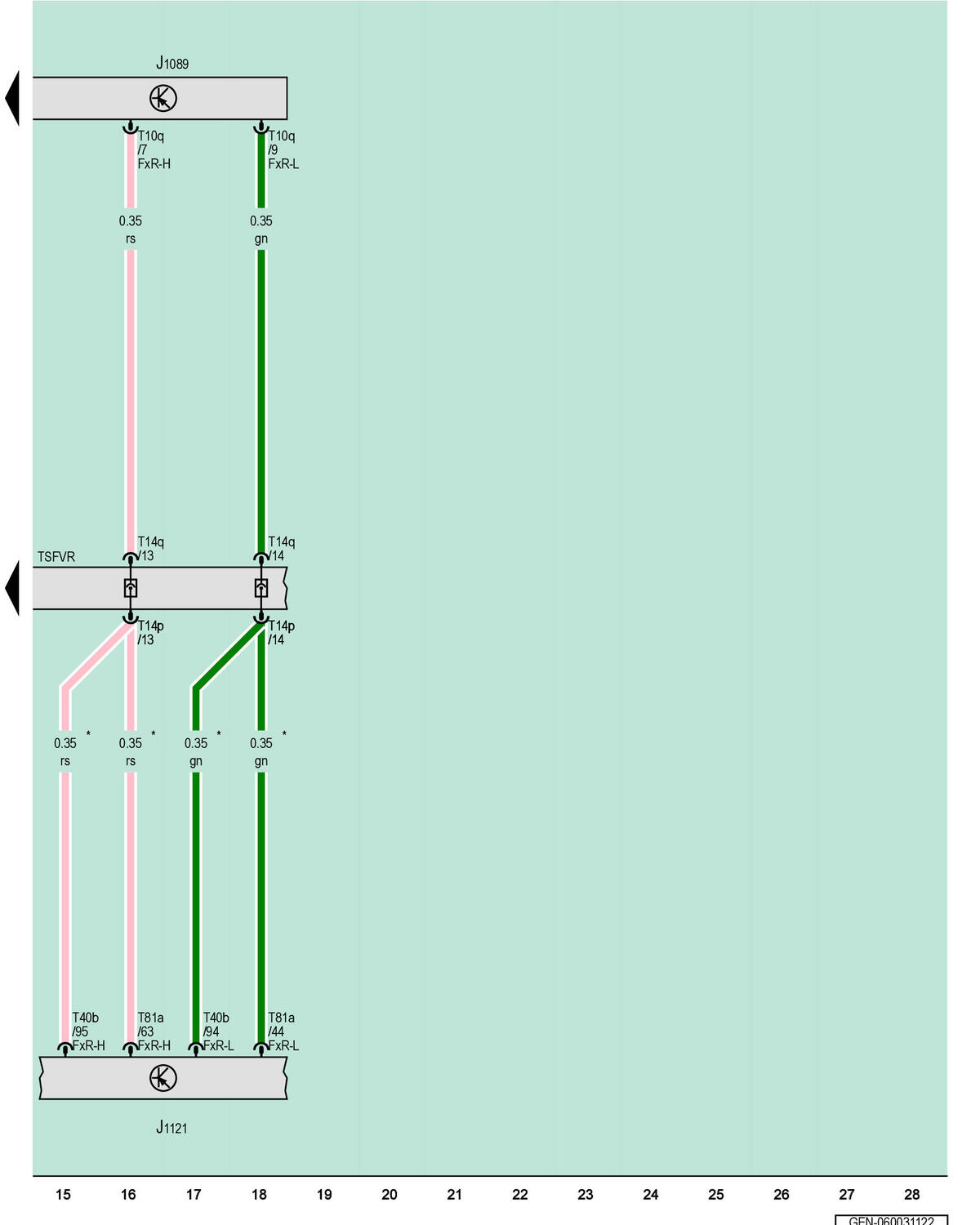

Control Module For Right Front Object Detection Radar Sensor, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J1089

Control Module for Right Front Object Detection Radar Sensor

J1121

Driver Assistance Systems Control Module

T10q

10-Pin Connector, Black

T14p

14-Pin Connector, Black

T14q

14-Pin Connector, Black

T40b

40-Pin Connector, Black

T81a

81-Pin Connector, Black

TSFVR

Coupling Point on Right Front Bumper

*

Depending on Equipment
