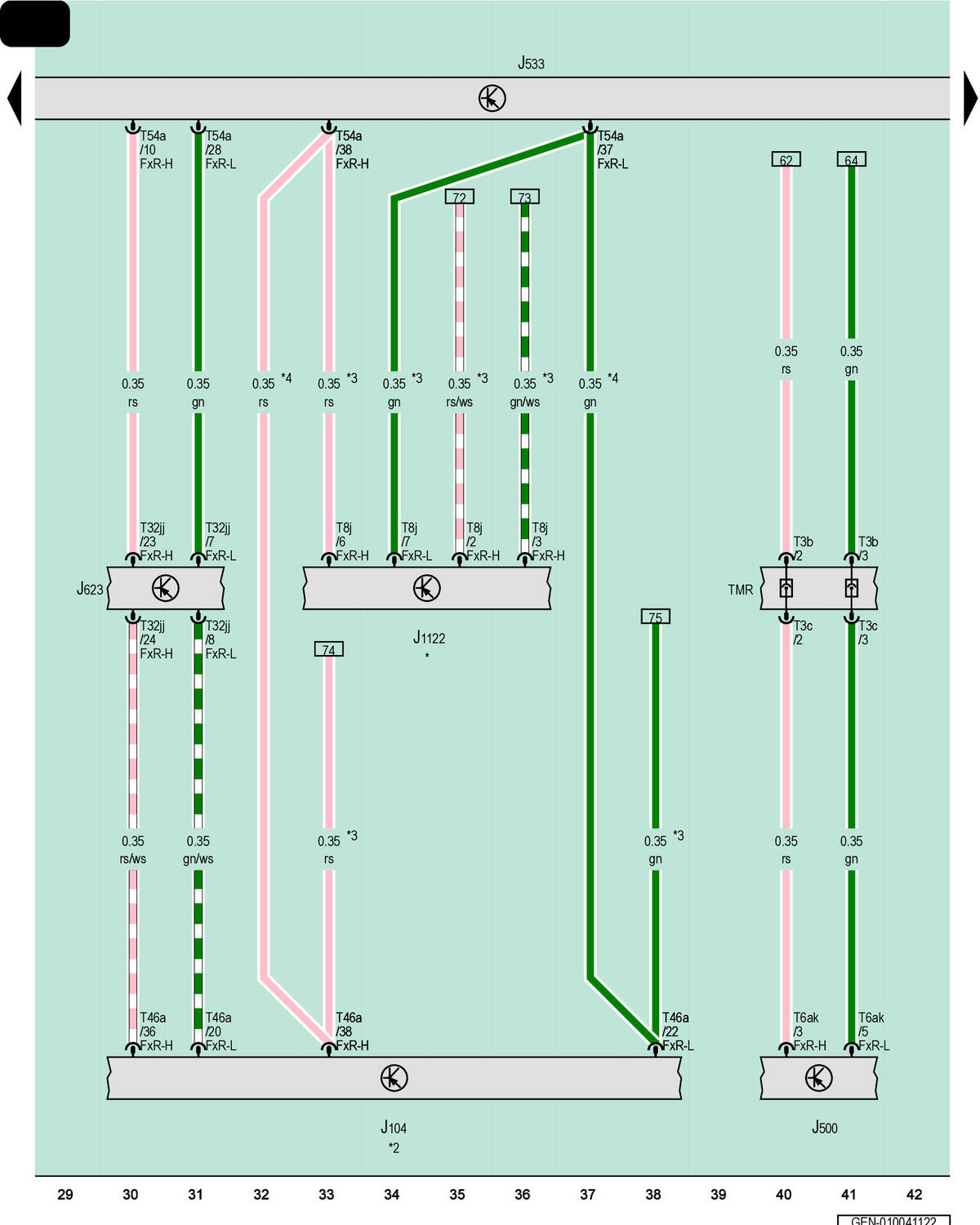

Abs Control Module, Power Steering Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Laser Distance Regulation Control Module
J104
ABS Control Module
J500
Power Steering Control Module
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
J1122
Laser Distance Regulation Control Module
T3b
3-Pin Connector, Black
T3c
3-Pin Connector, Black
T6ak
6-Pin Connector, Brown
T8j
8-Pin Connector, Black
T32jj
32-Pin Connector, Gray
T46a
46-Pin Connector, Black
T54a
54-Pin Connector, Black
TMR
Coupling Point in Engine/Motor Compartment, Right
*
Refer to Applicable Wiring Diagram for Adaptive Cruise Control
*2
Refer to Applicable Wiring Diagram for ABS
*3
For Vehicles with Adaptive Cruise Control (ACC)
*4
For Vehicles with Cruise Control System
