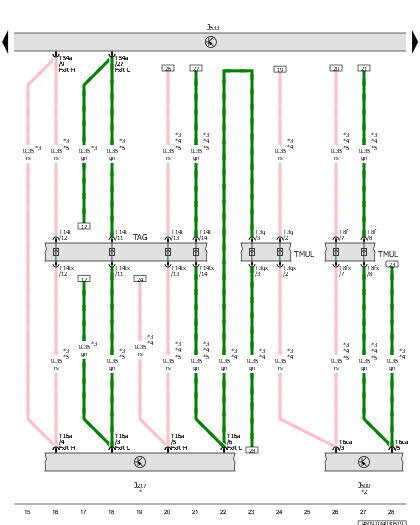

Transmission Control Module, Power Steering Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J500

Power Steering Control Module

J533

Data Bus on Board Diagnostic Interface

T3q

3-Pin Connector, Black

T3qx

3-Pin Connector, Black

T6ca

6-Pin Connector, Brown

T8f

8-Pin Connector, Black

T8fx

8-Pin Connector, Black

T14t

14-Pin Connector, Black

T14tx

14-Pin Connector, Black

T16a

16-Pin Connector, Black

T54a

54-Pin Connector, Black

TAG

Automatic Transmission Coupling Point

TMUL

Coupling Point on Engine, Bottom Left

*

Refer to Applicable Wiring Diagram for Automatic Transmission

*2

Refer to the Applicable Wiring Diagram for Electromechanical Power Steering

*3

For Vehicles with Automatic Transmission

*4

For Vehicles with Electromechanical Power Steering

*5

For Vehicles with a 8-Cylinder Engine
