Component Location Overview - MECHATRONIC Sensor

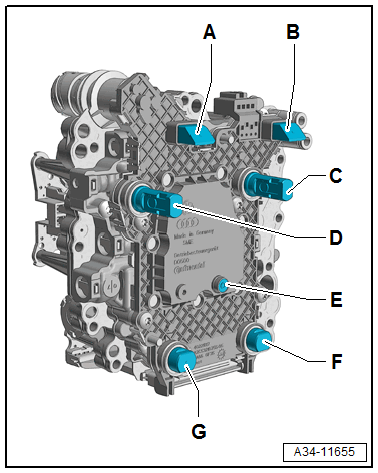

Fig 1: Mechatronic Sensor Components Location

Courtesy of AUDI OF AMERICA, LLC

1. A -  Gear Position Distance Sensor 4 -G490- for Gears R and 4
2. B -  Gear Position Distance Sensor 1 -G487- for Gears 5 and 1
3. C -  Transmission Input Speed Sensor 2 -G612-
4. D -  Transmission Input Speed Sensor 1 -G632-
5. E -  Transmission Fluid Temperature Sensor -G93-
6. F -  Gear Position Distance Sensor 2 -G488- for Gears 2 and 6
7. G -  Gear Position Distance Sensor 3 -G489- for Gears 3 and 7
