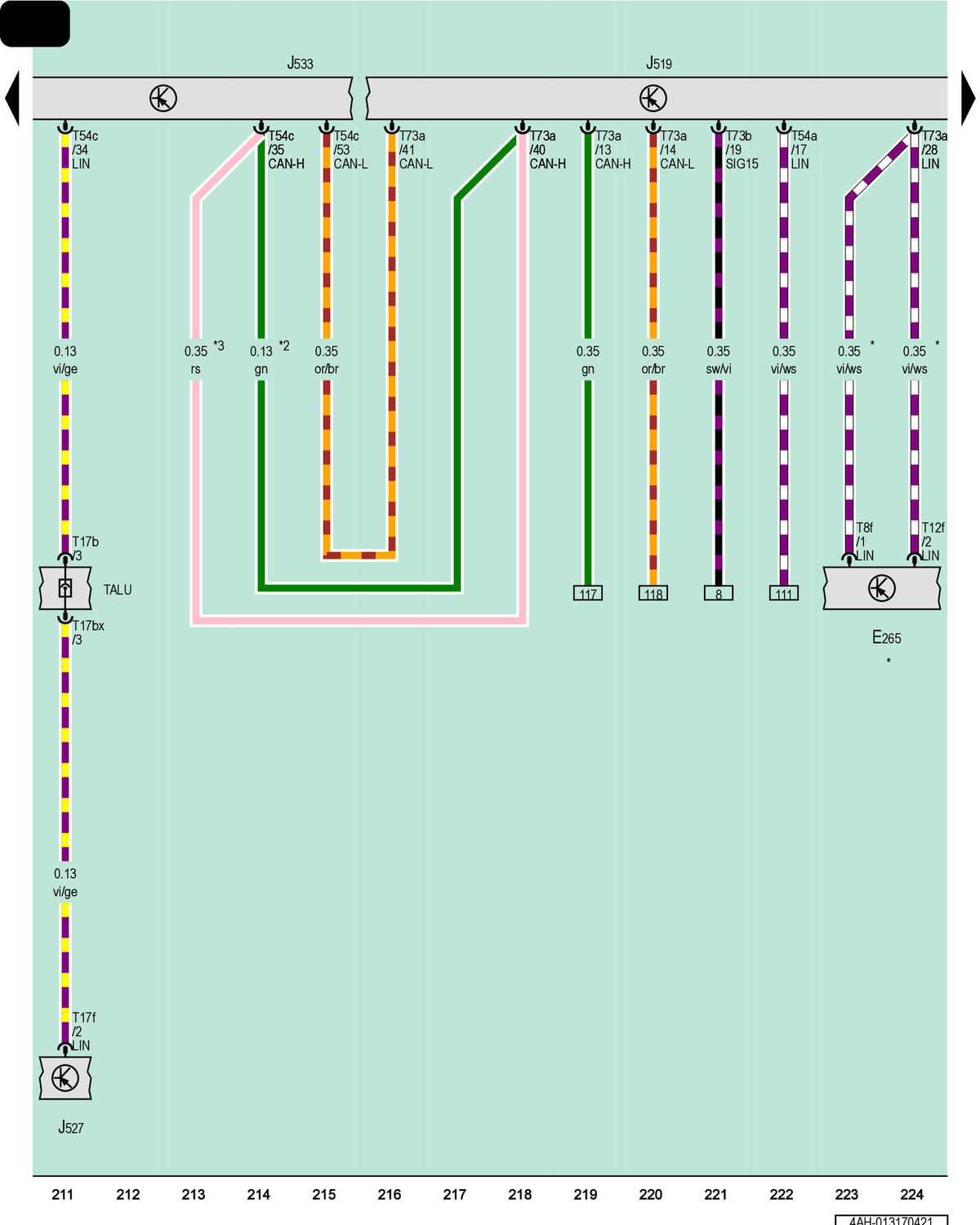

Rear A/C Display Control Head, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

E265

Rear A/C Display Control Head

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

J533

Data Bus on Board Diagnostic Interface

T8f

8-Pin Connector, Black

T12f

12-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

T17f

17-Pin Connector, Yellow

T54a

54-Pin Connector, Black

T54c

54-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

Refer to Applicable A/C System Wiring Diagram

*2

Omitted as a Running Change

*3

Running Change
