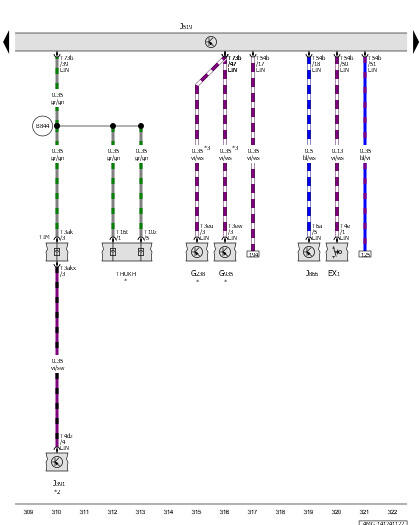

Rotary Light Switch, Air Quality Sensor, Exterior Air Quality And Humidity Sensor, Rear Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module
EX1
Rotary Light Switch
G238
Air Quality Sensor
G935
Exterior Air Quality and Humidity Sensor
J391
Rear Fresh Air Blower Control Module
J519
Vehicle Electrical System Control Module
J866
Power Adjustable Steering Column Control Module
T3ak
3-Pin Connector, Black
T3akx
3-Pin Connector, Black
T3eu
3-Pin Connector, Black
T3ew
3-Pin Connector, Brown
T4dz
4-Pin Connector, Black
T4e
4-Pin Connector, Red
T6a
6-Pin Connector, Brown
T10z
10-Pin Connector, Black
T16t
16-Pin Connector, Black
T54b
54-Pin Connector, Black
T73b
73-Pin Connector, Black, Naturally Cloudy
THUKH
Rear Heating and Air Conditioning Coupling Point
TIM
Coupling Point in Interior, Center
B844
LIN Bus Connection 10 (in Main Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Pre-Wired Component
*3
Depending on Equipment
