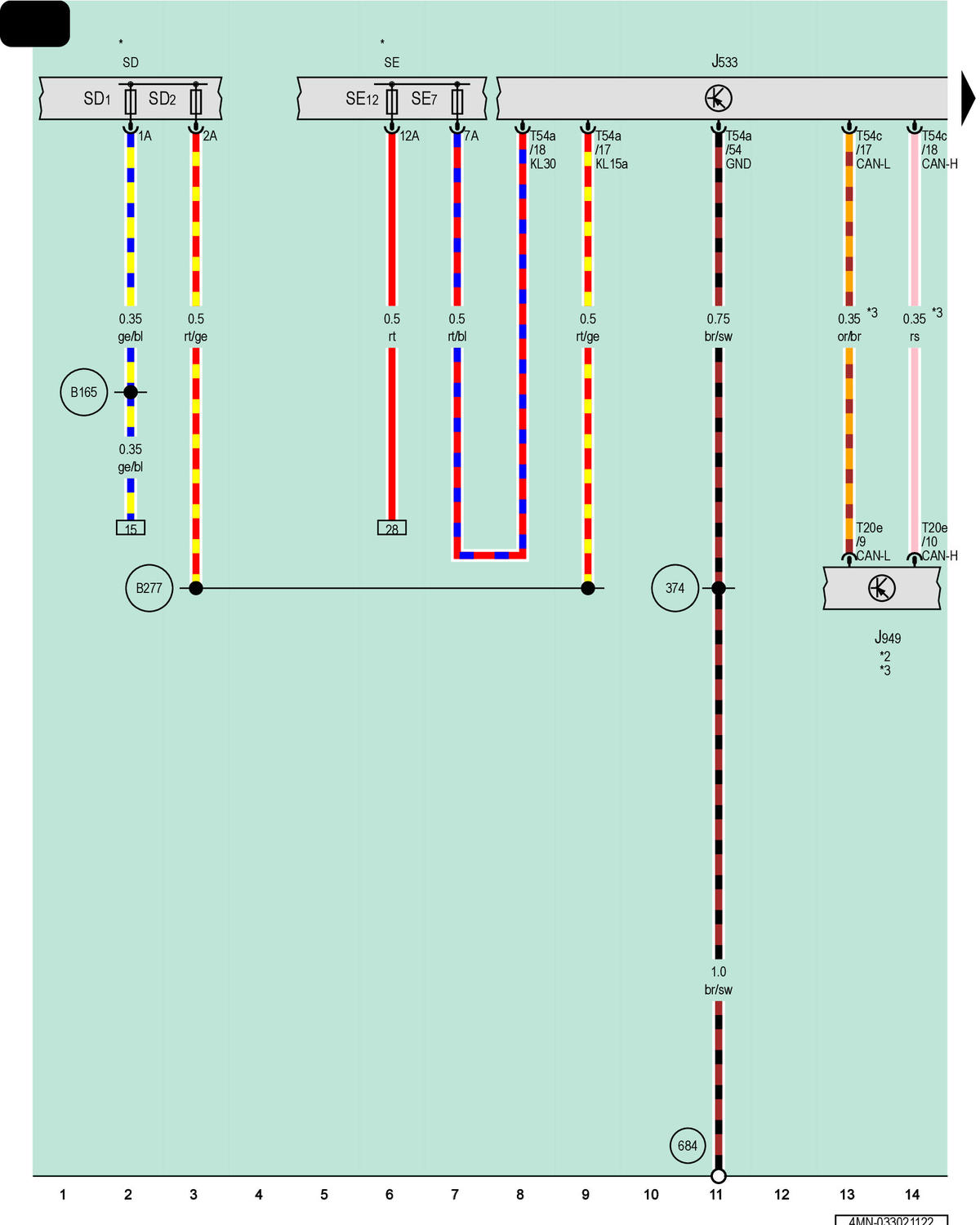

Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit, Fuse Panel D, Fuse Panel E

Courtesy of AUDI

J533

Data Bus on Board Diagnostic Interface

J949

Control Module for Emergency Call Module and Communication Unit

SD

Fuse Panel D

SD1

Fuse 1 (On Fuse Panel D)

SD2

Fuse 2 (On Fuse Panel D)

SE

Fuse Panel E

SE7

Fuse 7 on Fuse Panel E

SE12

Fuse 12 on Fuse Panel E

T20e

20-Pin Connector, Black

T54a

54-Pin Connector, Black

T54c

54-Pin Connector, Gray

374

Ground Connection 9 (in Main Wiring Harness)

684

Ground Connection on Left Front Side Member

B165

Positive Connection 2 (15) (in Interior Wiring Harness)

B277

Positive Connection 1 (15a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Refer to Applicable Wiring Diagram

*3

For Vehicles with Emergency Call Module
