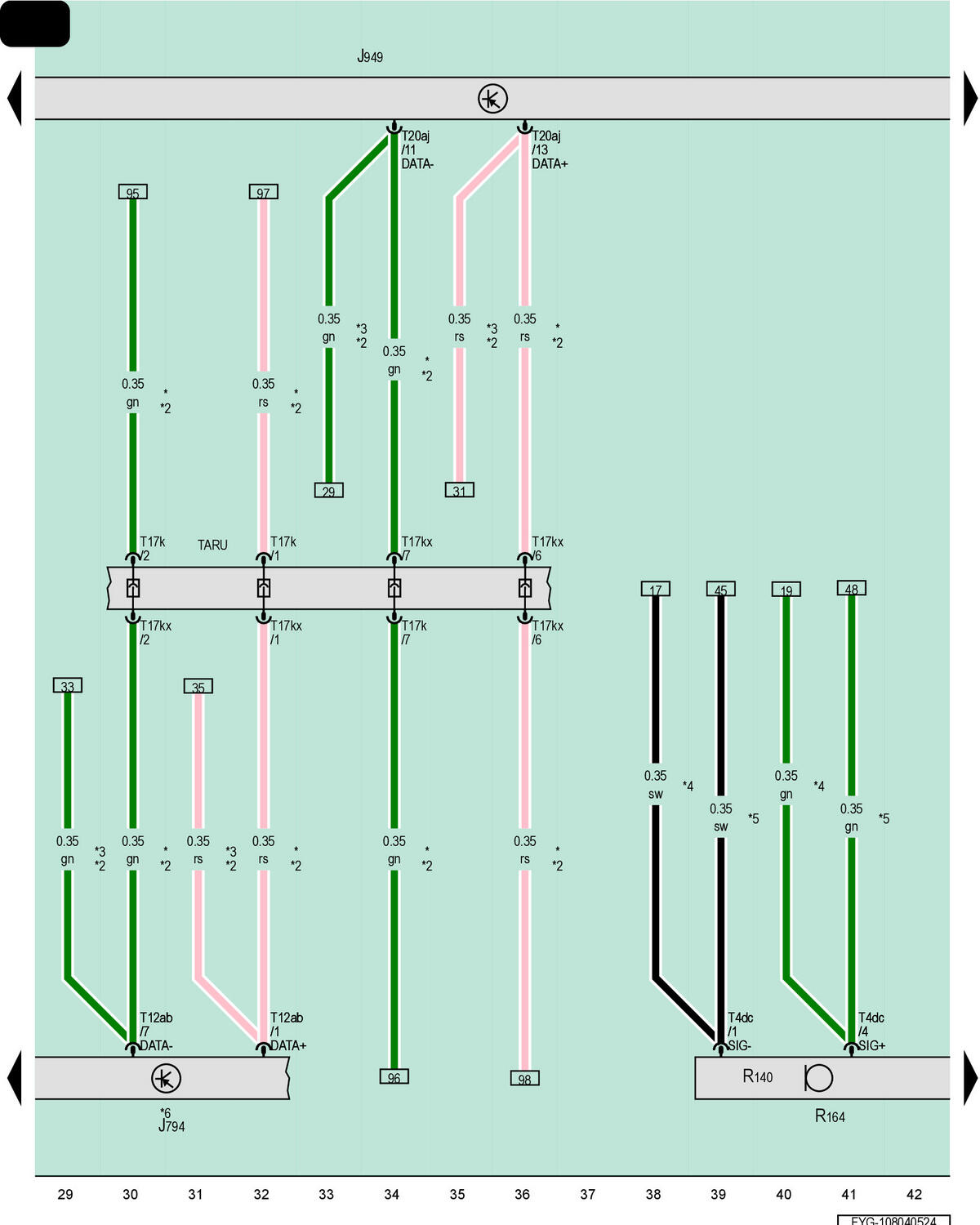

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Left Front Microphone, Microphone Unit In Front Roof Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R140
Left Front Microphone
R164
Microphone Unit in Front Roof Module
T4dc
4-Pin Connector, Gray
T12ab
12-Pin Connector, Green
T17k
17-Pin Connector, Black
T17kx
17-Pin Connector, Black
T20aj
20-Pin Connector, Naturally Cloudy
TARU
Coupling Point on Right A-Pillar, Bottom
*
For Vehicles with an Amplifier
*2
Audio Bus Data Bus Wire
*3
For Vehicles Without an Amplifier
*4
For LHD Vehicles
*5
For RHD Vehicles
*6
Refer to Applicable MMI (Information Electronics) Wiring Diagram
