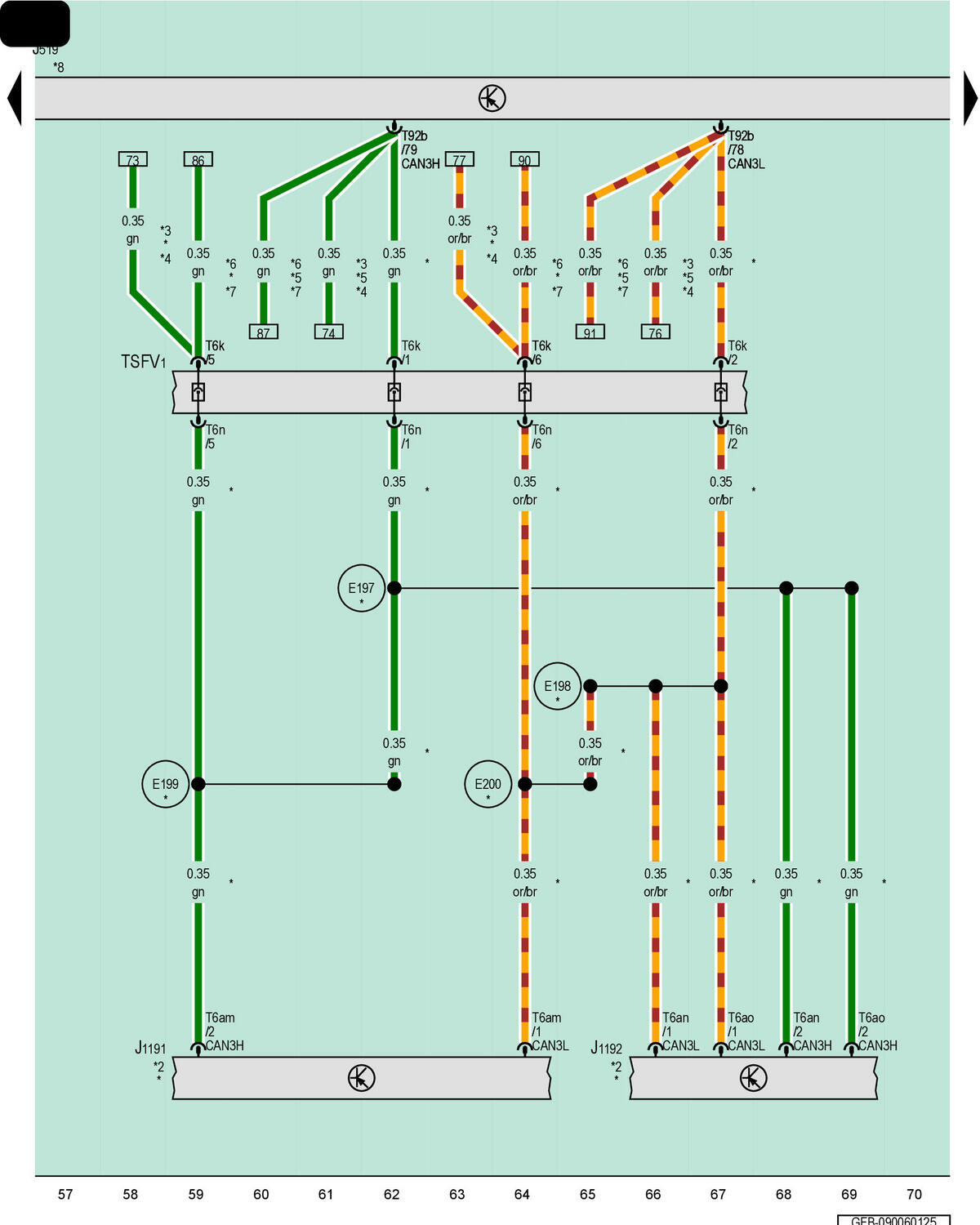

Vehicle Electrical System Control Module, Burglary Protection Control Module, Burglary Protection Control Module 2
J519
Vehicle Electrical System Control Module
J1191
Burglary Protection Control Module
J1192
Burglary Protection Control Module 2
T6am
6-Pin Connector, Black
T6an
6-Pin Connector, Black
T6ao
6-Pin Connector, Black
T6k
6-Pin Connector, Black
T6n
6-Pin Connector, Black
T92b
92-Pin Connector, White
TSFV1
Front Bumper Coupling Point 1
E197
CAN Bus 3, J519 High Connection 3 (in Bumper Wiring Harness)
E198
CAN Bus 3, J519 Low Connection 3 (in Bumper Wiring Harness)
E199
CAN Bus 3, J519 High Connection 4 (in Bumper Wiring Harness)
E200
CAN Bus 3, J519 Low Connection 4 (in Bumper Wiring Harness)
*
For Vehicles with Keyless Access Authorization
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3
For Vehicles Without Interior Monitoring
*4
For Vehicles Without Cell Phone Access System
*5
For Vehicles Without Keyless Access Authorization
*6
For Vehicles with Interior Monitoring
*7
For Vehicles with Cell Phone Access System
*8
Refer to Applicable Convenience System Wiring Diagram
