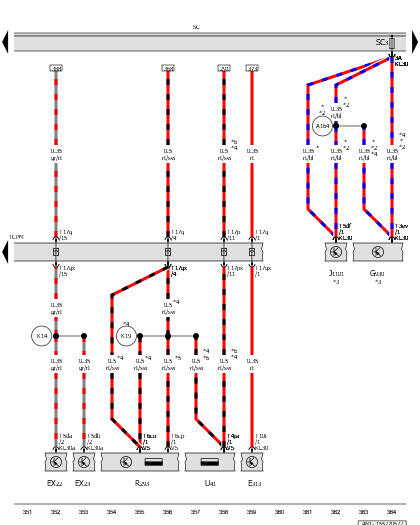

Center Instrument Panel Switch Module, Center Console Switch Module 1, Selector Lever, A/C System Particulate Matter Concentration Sensor, Fragrance Diffuser System Control Module, USB Distributor, Fuse Panel C, USB Connection 1
EX22
Center Instrument Panel Switch Module
EX23
Center Console Switch Module 1
E313
Selector Lever
G930
A/C System Particulate Matter Concentration Sensor
J1101
Fragrance Diffuser System Control Module
R293
USB Distributor
SC
Fuse Panel C
SC3
Fuse 3 (On Fuse Panel C)
T3ev
3-Pin Connector, Blue
T4ja
4-Pin Connector, Red
T5da
5-Pin Connector, Brown
T5db
5-Pin Connector, Black
T5df
5-Pin Connector, Black
T6co
6-Pin Connector, Black
T6cp
6-Pin Connector, Brown
T10i
10-Pin Connector, Black
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
T17q
17-Pin Connector, Black
T17qx
17-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
U41
USB Connection 1
A164
Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
K19
Connection 2 (30) (in Center Console Wiring Harness)
*
For Vehicles with Ionizer
*2
For Vehicles with an Air Quality Sensor
*3
Refer to Applicable A/C System Wiring Diagram
*4
Depending on Equipment
*5
For Vehicles without Mobile Online Services
*6
For Vehicles with External Audio Source Connection - Audi Music Interface
