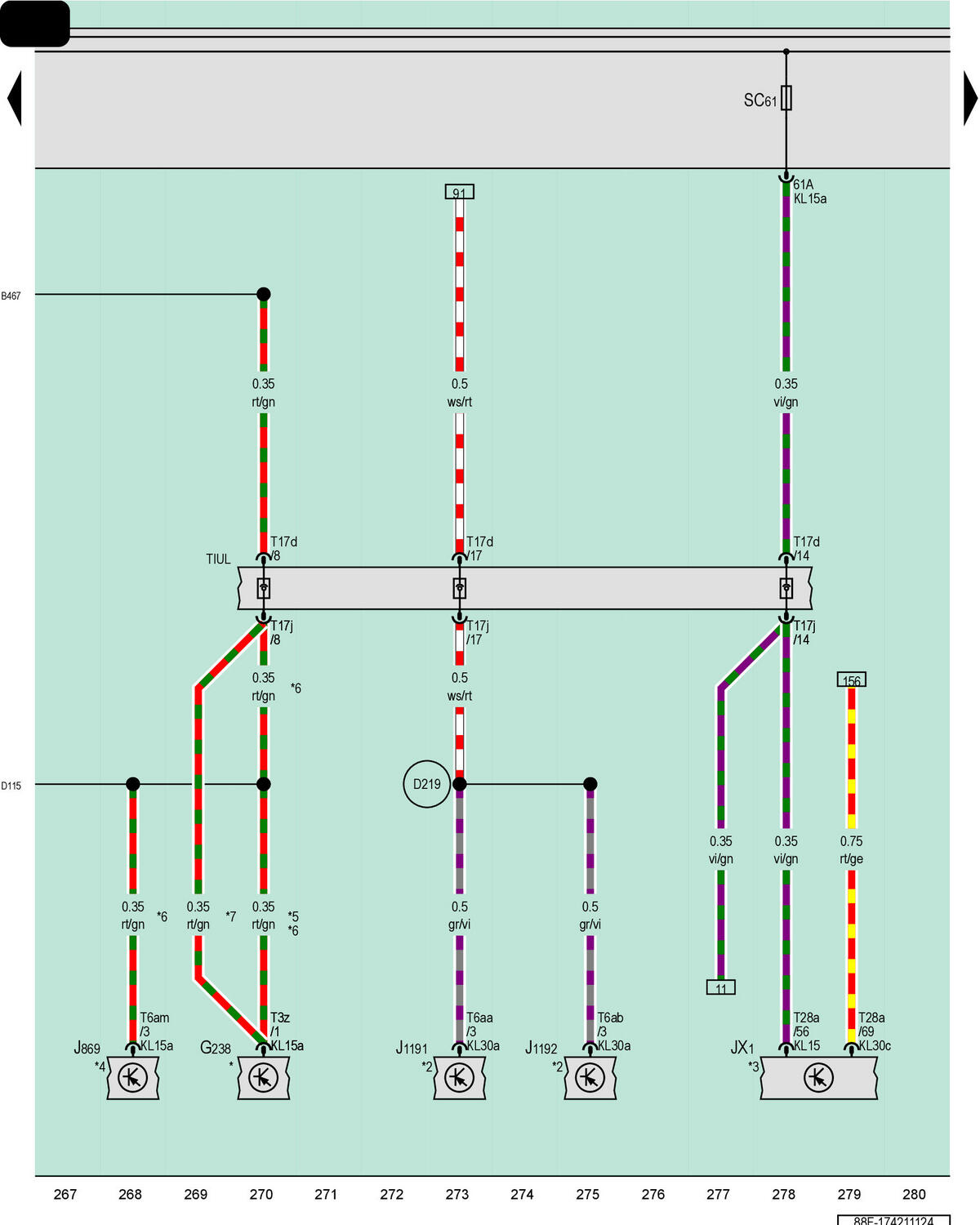

Air Quality Sensor, Electric Drive Power And Control Electronics, Structure-Borne Sound Control Module, Burglary Protection Control Module, Burglary Protection Control Module 2, Fuse Panel C
G238
Air Quality Sensor
JX1
Electric Drive Power and Control Electronics
J869
Structure-Borne Sound Control Module
J1191
Burglary Protection Control Module
J1192
Burglary Protection Control Module 2
SC
Fuse Panel C
SC61
Fuse 61 (On Fuse Panel C)
T3z
3-Pin Connector, Brown
T6aa
6-Pin Connector, Black
T6ab
6-Pin Connector, Black
T6am
6-Pin Connector, Black
T17d
17-Pin Connector, Red
T17j
17-Pin Connector, Red
T28a
28-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
B467
Connection 3 (in Main Wiring Harness)
D115
Connection 13 (in Engine/Motor Compartment Wiring Harness)
D219
Positive Connection 7 (30a) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3
Refer to Applicable High-Voltage System Wiring Diagram
*4
Refer to the Applicable Engine Sound Generator Wiring Diagram
*5
For Vehicles with Climatronic
*6
For Vehicles Without Hybrid Drive
*7
For Vehicles with Hybrid Drive
