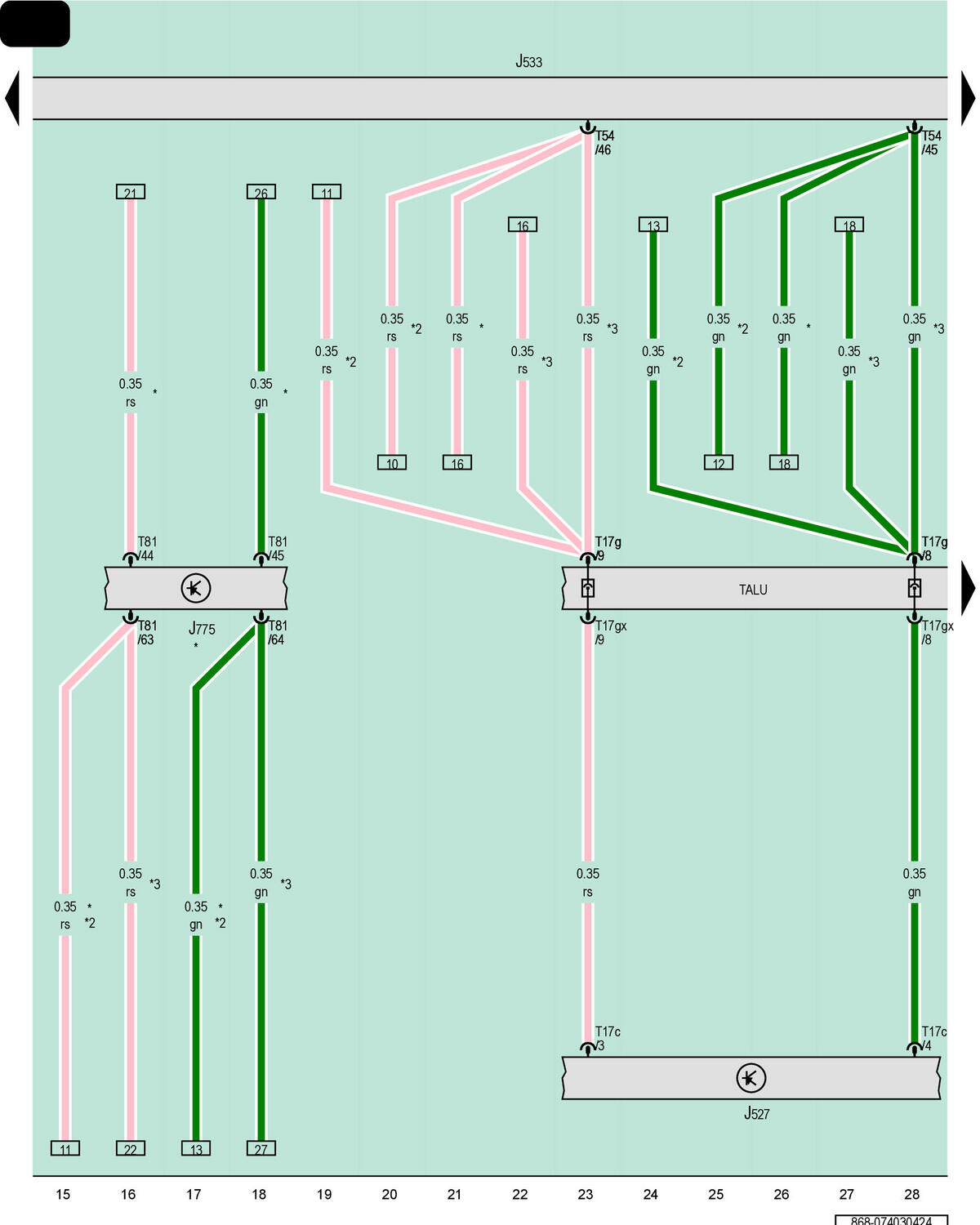

Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Active Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J187

Differential Lock Control Module

J533

Data Bus on Board Diagnostic Interface

J792

Active Steering Control Module

T6aq

6-Pin Connector, Green

T6aqx

6-Pin Connector, Green

T30

30-Pin Connector, Black

T47a

47-Pin Connector, Black

T54

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

For Vehicles with Rear Final Drive - Sport Differential

For Vehicles with Active Steering
