Fuel Tank Leak Detection Function
- The function of the leak detection system is based on the premise that the fuel system creates a natural vacuum when the fuel in the fuel tank becomes colder.

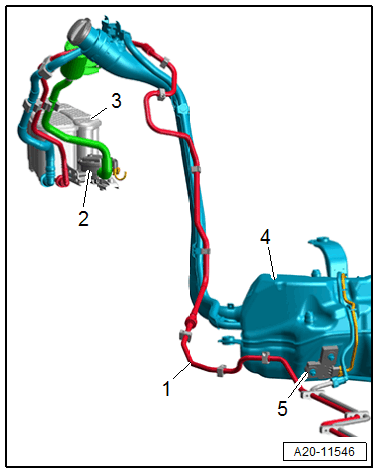

- The Fuel Tank Pressure Sensor -G400- -item 2- senses the vacuum in the bleed line for the EVAP canister -3-. The Fuel Tank Leak Detection Control Module -J909- -item 5- is attached directly to the wall of the fuel tank and monitors the temperature inside the fuel tank -4-. The system is considered to be sealed if the measured vacuum is 2.5 mbar (0.04 psi). If there is no vacuum, then there is a leak in the fuel system, which will result in an entry in the engine control module DTC memory.
1 -
Bleeder Line to Engine
