Selector Mechanism

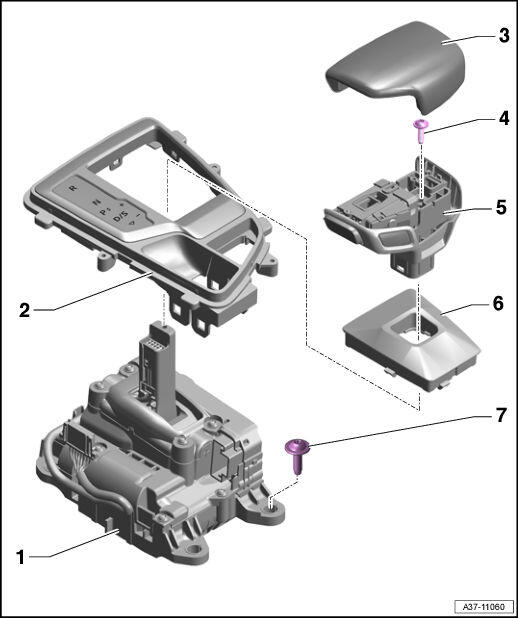

Fig 1: Exploded View Of Selector Mechanism

GWWA37-11060

Courtesy of AUDI OF AMERICA, LLC

1 - Selector lever -E313-
1 - Selector lever position sensor -G727-
1 - Transverse selector lever lock sensor -G868-
1 - Shift lock solenoid -N110-
1 - Transverse selector lever lock motor -V577-
2 - Selector lever transmission range display -Y5-
5 - Selector lever release button -E681-
5 - Parking lock button -E816-
