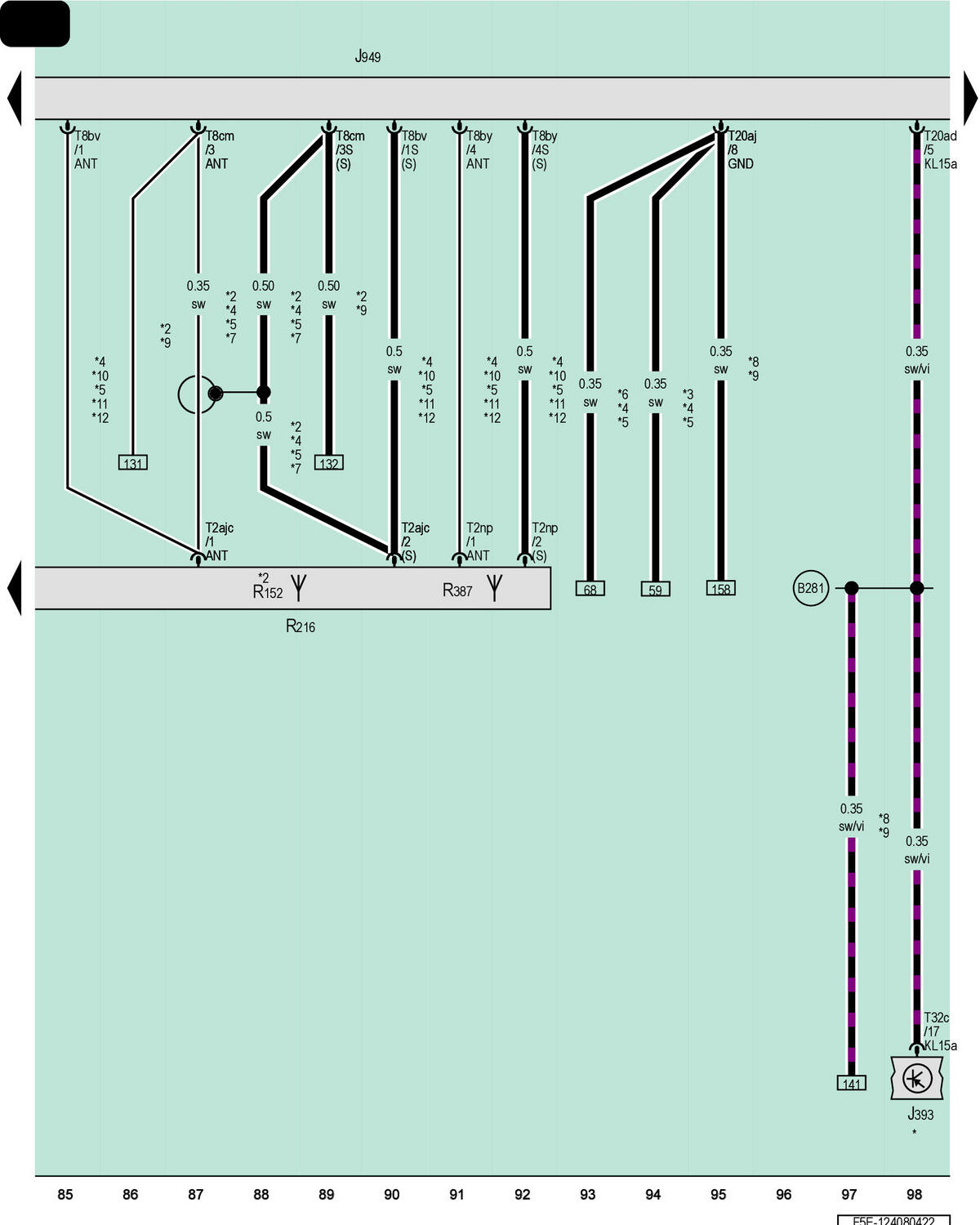

Comfort System Central Control Module, Control Module For Emergency Call Module And Communication Unit, Roof Antenna

GWWF5E-124080422Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J949

Control Module for Emergency Call Module and Communication Unit

R152

Bluetooth Antenna

R216

Roof Antenna

R387

Antenna for External Communication with Vehicle

T2ajc

2-Pin Connector, Black

T2np

2-Pin Connector, White

T8bv

8-Pin Connector, Light Blue

T8by

8-Pin Connector, White

T8cm

8-Pin Connector, White

T20ad

20-Pin Connector, Black

T20aj

20-Pin Connector, Naturally Cloudy

T32c

32-Pin Connector, Black

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

Refer to Applicable Convenience System Wiring Diagram

*2

For Vehicles with Cell Phone/Telephone

*3

For LHD Vehicles

*4

Coupe

*5

Sportback

*6

For RHD Vehicles

*7

For Vehicles Without External Vehicle Communication

*8

For Vehicles with Seat Belt Microphone

*9

For Convertible

*10

For Vehicles with China Equipment

*11

From December 2021

*12

For Vehicles with External Vehicle Communication
